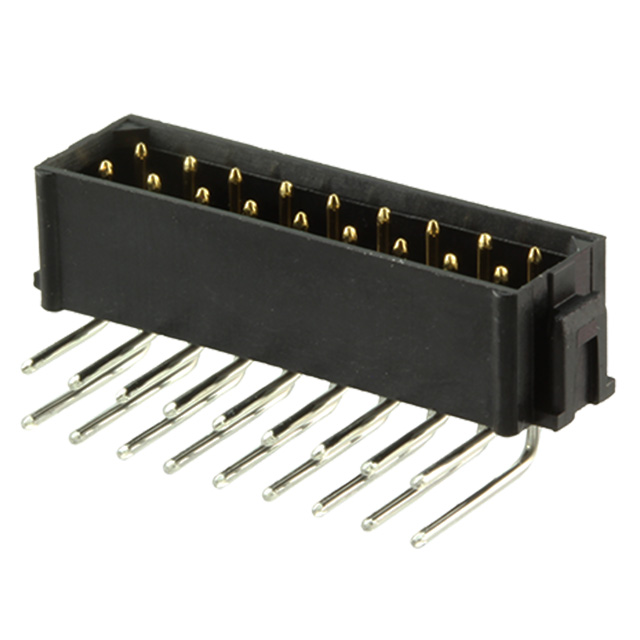

M80-8681822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

ECCN Code :

EAR99

Orientation :

RIGHT ANGLE

IEC Conformance :

No

Number of Positions :

18

Contact Type :

Male Pin

Max Voltage Rating (AC) :

120V

Contact Length - Post :

0.118 3.00mm

Number Of PCB Rows :

2

Row Spacing - Mating :

0.079 (2.00mm)

UL Flammability Code :

94V-0

Insulation Height :

0.235 5.97mm

MIL Conformance :

No

DIN Conformance :

No

Contact Material :

Phosphor Bronze

Housing Material :

Polyester

Style :

Board to Board or Cable

Contact Finish - Mating :

Gold

Mount :

Through Hole

Pbfree Code :

No

Mounting Type :

Through Hole, Right Angle

Depth :

8.13mm

Termination :

Solder

Material Flammability Rating :

UL94 V-0

JESD-609 Code :

e0

Reference Standard :

UL

Connector Type :

Header

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

21.6mm

RoHS Status :

Non-RoHS Compliant

Contact Shape :

Circular

Contact Finish Thickness - Post :

118.1μin 3.00μm

Reach Compliance Code :

not_compliant

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Rows :

2

Packaging :

Tube

Operating Temperature :

-55°C~125°C

Filter Feature :

No

Series :

Datamate L-Tek

Mixed Contacts :

No

HTS Code :

8536.69.40.40

Max Current Rating :

3A

Number of Positions Loaded :

All

Fastening Type :

Latch Holder

Contact Gender :

Male

Contact Finish - Post :

Tin-Lead

Reliability :

COMMERCIAL

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Factory Lead Time :

11 Weeks

Feature :

Strain Relief Clips

Insulation Resistance :

1000000000Ohm

Number of Conductors :

ONE

Contact Resistance :

25mOhm

PCB Contact Pattern :

RECTANGULAR

Insulation Color :

Black

Published :

2009

Shrouding :

Shrouded - 4 Wall

Current Rating :

3A

Pitch - Mating :

0.079 2.00mm

Durability :

500 Cycles

Current Rating (Amps) :

2.2A

Mating Contact Pitch :

0.079 inch
