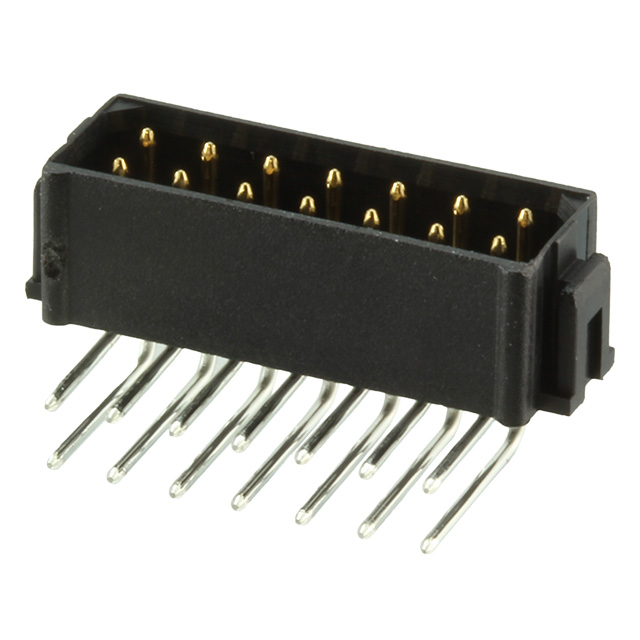

M80-8681422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2009

Pbfree Code :

No

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Max Voltage Rating (AC) :

120V

Operating Temperature :

-55°C~125°C

Housing Material :

Polyester

Contact Type :

Male Pin

Mounting Type :

Through Hole, Right Angle

Reference Standard :

UL

Pitch - Mating :

0.079 2.00mm

Durability :

500 Cycles

Contact Resistance :

25mOhm

Packaging :

Tube

Contact Gender :

Male

Insulation Resistance :

1000000000Ohm

Contact Length - Post :

0.118 3.00mm

Feature :

Strain Relief Clips

JESD-609 Code :

e0

Reliability :

COMMERCIAL

Insulation Height :

0.235 5.97mm

Current Rating (Amps) :

2.2A

DIN Conformance :

No

Contact Finish - Post :

Tin-Lead

Filter Feature :

No

Row Spacing - Mating :

0.079 (2.00mm)

PCB Contact Pattern :

RECTANGULAR

Length :

17.6mm

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Termination :

Solder

Series :

Datamate L-Tek

Number of Positions :

14

Style :

Board to Board or Cable

Contact Finish Thickness - Post :

118.1μin 3.00μm

Mount :

Through Hole

Current Rating :

3A

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Holder

Reach Compliance Code :

not_compliant

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Shape :

Circular

IEC Conformance :

No

MIL Conformance :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Max Current Rating :

3A

Contact Finish - Mating :

Gold

Connector Type :

Header

Number Of PCB Rows :

2

Depth :

8.13mm

UL Flammability Code :

94V-0

Orientation :

RIGHT ANGLE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Color :

Black

Factory Lead Time :

11 Weeks

Number of Rows :

2

RoHS Status :

Non-RoHS Compliant
