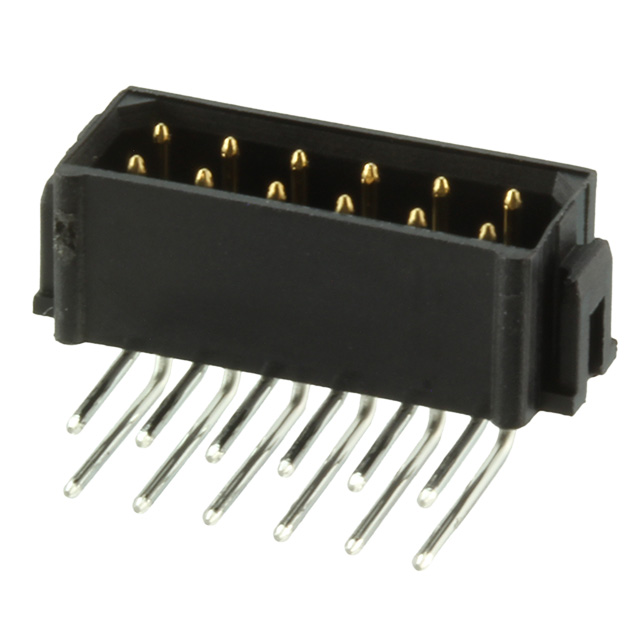

M80-8681222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2009

Feature :

Strain Relief Clips

Contact Length - Post :

0.118 3.00mm

Number of Conductors :

ONE

Contact Finish - Mating :

Gold

Housing Material :

Polyester

Contact Finish - Post :

Tin-Lead

Fastening Type :

Latch Holder

JESD-609 Code :

e0

Contact Resistance :

25mOhm

Orientation :

RIGHT ANGLE

Mount :

Through Hole

MIL Conformance :

No

Series :

Datamate L-Tek

Material Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

UL Flammability Code :

94V-0

Mixed Contacts :

No

Number of Positions Loaded :

All

Row Spacing - Mating :

0.079 (2.00mm)

Contact Finish Thickness - Post :

118.1μin 3.00μm

Style :

Board to Board or Cable

Current Rating (Amps) :

2.2A

Current Rating :

3A

Pbfree Code :

No

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Insulation Color :

Black

Number of Positions :

12

Contact Gender :

Male

Mating Contact Pitch :

0.079 inch

Reliability :

COMMERCIAL

Contact Shape :

Circular

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Packaging :

Tube

Reach Compliance Code :

not_compliant

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-55°C~125°C

Insulation Resistance :

1000000000Ohm

Max Current Rating :

3A

Number of Rows :

2

Connector Type :

Header

Durability :

500 Cycles

Termination :

Solder

IEC Conformance :

No

Option :

GENERAL PURPOSE

Factory Lead Time :

11 Weeks

Number Of PCB Rows :

2

ECCN Code :

EAR99

Insulation Height :

0.235 5.97mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

Non-RoHS Compliant

Filter Feature :

No

Pitch - Mating :

0.079 2.00mm

Depth :

8.13mm

Max Voltage Rating (AC) :

120V

HTS Code :

8536.69.40.40

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material :

Phosphor Bronze

Reference Standard :

UL

Length :

15.6mm

Shrouding :

Shrouded - 4 Wall
