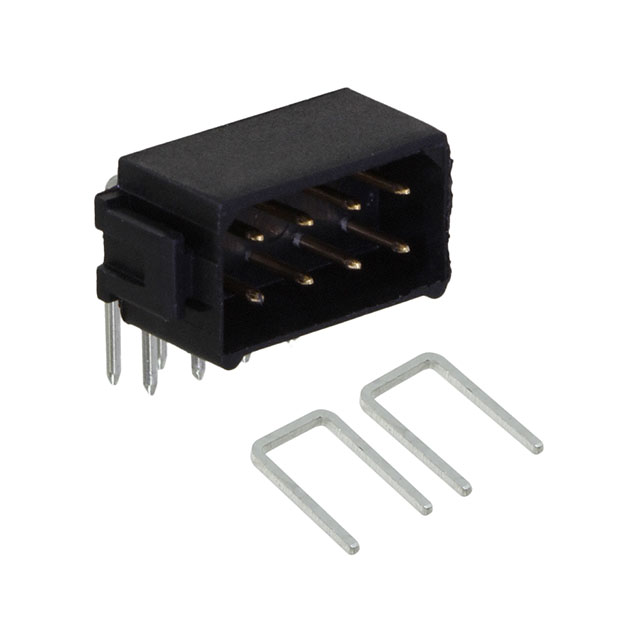

M80-8680822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.118 3.00mm

Max Voltage Rating (AC) :

120V

UL Flammability Code :

94V-0

Contact Resistance :

25mOhm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Length :

11.6mm

Insulation Height :

0.235 5.97mm

JESD-609 Code :

e0

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Housing Material :

Polyester

Number of Positions :

8

Max Current Rating :

3A

Contact Type :

Male Pin

Fastening Type :

Latch Holder

Depth :

8.13mm

Orientation :

RIGHT ANGLE

Number Of PCB Rows :

2

Number of Rows :

2

IEC Conformance :

No

Pitch - Mating :

0.079 2.00mm

Row Spacing - Mating :

0.079 (2.00mm)

Contact Finish - Post :

Tin-Lead

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Insulation Color :

Black

MIL Conformance :

No

Packaging :

Tube

Feature :

Strain Relief Clips

ECCN Code :

EAR99

Contact Finish Thickness - Post :

118.1μin 3.00μm

DIN Conformance :

No

Pbfree Code :

No

Reference Standard :

UL

Published :

2009

Contact Shape :

Circular

Termination :

Solder

Number of Conductors :

ONE

Mating Contact Pitch :

0.079 inch

Contact Finish - Mating :

Gold

Number of Positions Loaded :

All

PCB Contact Pattern :

RECTANGULAR

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Insulation Resistance :

1000000000Ohm

Mounting Type :

Through Hole, Right Angle

Connector Type :

Header

Filter Feature :

No

Series :

Datamate L-Tek

RoHS Status :

Non-RoHS Compliant

Reliability :

COMMERCIAL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

11 Weeks

Contact Gender :

Male

Durability :

500 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Phosphor Bronze

Style :

Board to Board or Cable

Current Rating :

3A

Reach Compliance Code :

not_compliant

Current Rating (Amps) :

2.2A
