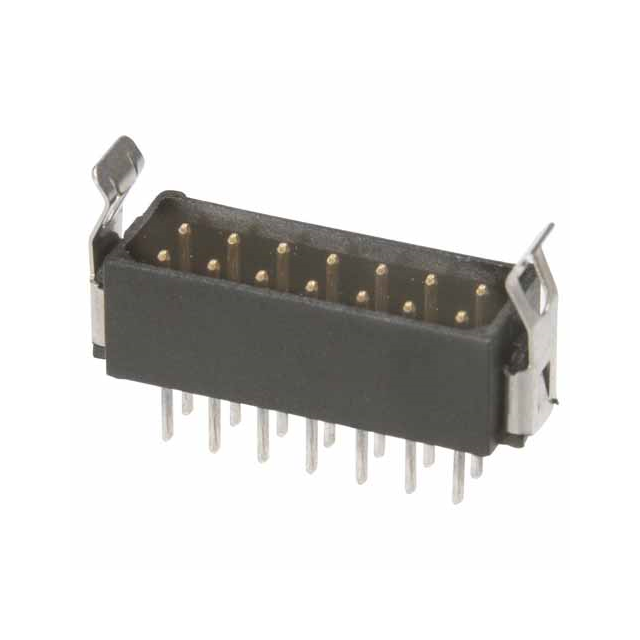

M80-8673405

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.079 inch

Packaging :

Tube

HTS Code :

8536.69.40.40

Series :

Datamate L-Tek

Polarization Key :

POLARIZED HOUSING

Body Length or Diameter :

1.5 inch

Contact Material :

Phosphor Bronze

Orientation :

Straight

Voltage - Rated :

800V

JESD-609 Code :

e4

Insulation Height :

0.219 5.56mm

Termination :

Solder

Radiation Hardening :

No

Contact Finish - Mating :

Gold

Contact Type :

Male Pin

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Option :

GENERAL PURPOSE

Plating Thickness :

30μin

Durability :

500 Cycles

Mounting Type :

Through Hole

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

Row Spacing - Mating :

0.079 (2.00mm)

Number of Conductors :

ONE

Contact Shape :

Circular

Factory Lead Time :

11 Weeks

MIL Conformance :

No

Contact Gender :

Male

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Dielectric Withstanding Voltage :

360VAC V

DIN Conformance :

No

Number of Positions Loaded :

All

Connector Type :

Header

Fastening Type :

Latch Lock

Insulation Color :

Black

Additional Feature :

LATCHED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Length - Termination :

0.118 inch

Insulation Material :

Polyester, Glass Filled

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Reference Standard :

UL

Pbfree Code :

No

Number of Rows :

2

Current Rating (Amps) :

2.2A per Contact

Shrouding :

Shrouded - 4 Wall

ECCN Code :

EAR99

RoHS Status :

Non-RoHS Compliant

Published :

2013

PCB Contact Pattern :

RECTANGULAR

Insulation Resistance :

100000000Ohm

Style :

Board to Board or Cable

Number of Positions :

34

Contact Length - Post :

0.118 3.00mm

Number Of PCB Rows :

2

IEC Conformance :

No

Reliability :

COMMERCIAL
