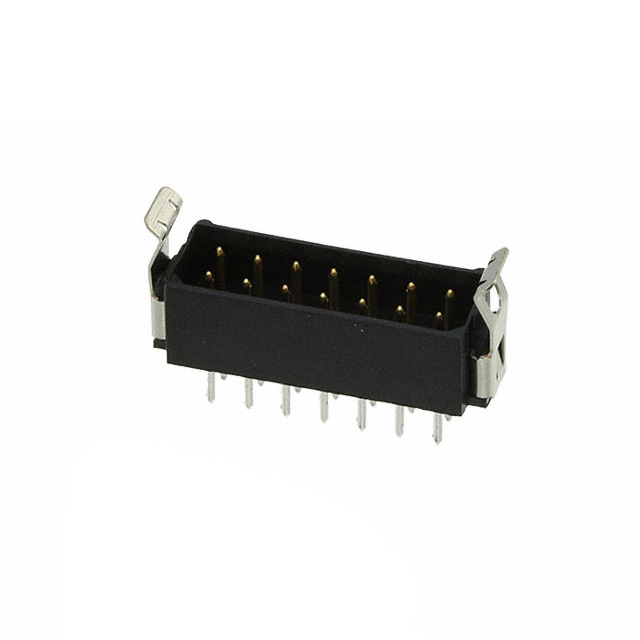

M80-8671422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Series :

Datamate L-Tek

Reference Standard :

UL

Contact Resistance :

25mOhm

Shrouding :

Shrouded - 4 Wall

Option :

GENERAL PURPOSE

Number of Positions Loaded :

All

DIN Conformance :

No

Insulation Resistance :

100000000Ohm

Material Flammability Rating :

UL94 V-0

Durability :

500 Cycles

Factory Lead Time :

11 Weeks

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Contact Finish Thickness - Post :

118.1μin 3.00μm

Plating Thickness :

30μin

Insulation Height :

0.219 5.56mm

Pbfree Code :

No

Contact Material :

Phosphor Bronze

Operating Temperature :

-55°C~125°C

Mating Contact Pitch :

0.079 inch

REACH SVHC :

No SVHC

Pitch - Mating :

0.079 2.00mm

Length :

18mm

Number of Rows :

2

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Mixed Contacts :

No

JESD-609 Code :

e0

Mount :

Through Hole

Mounting Type :

Through Hole

Max Voltage Rating (AC) :

120V

Number Of PCB Rows :

2

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Length - Post :

0.118 3.00mm

Max Current Rating :

3A

Current Rating :

3A

UL Flammability Code :

94V-0

Additional Feature :

LATCHED

RoHS Status :

Non-RoHS Compliant

Contact Finish - Post :

Tin-Lead

Reach Compliance Code :

not_compliant

Voltage - Rated :

800V

Contact Type :

Male Pin

Contact Gender :

Male

Fastening Type :

Latch Lock

Contact Shape :

Circular

Published :

2009

Number of Positions :

14

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

HTS Code :

8536.69.40.40

Contact Finish - Mating :

Gold

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Dielectric Withstanding Voltage :

360VAC V

ECCN Code :

EAR99

Connector Type :

Header

Insulation Material :

Polyester, Glass Filled

Housing Color :

Black

Orientation :

Straight

Style :

Board to Board or Cable

Packaging :

Tube

Current Rating (Amps) :

2.2A

Housing Material :

Polyester

PCB Contact Pattern :

RECTANGULAR

Row Spacing - Mating :

0.079 (2.00mm)

MIL Conformance :

No

Depth :

5.98mm
