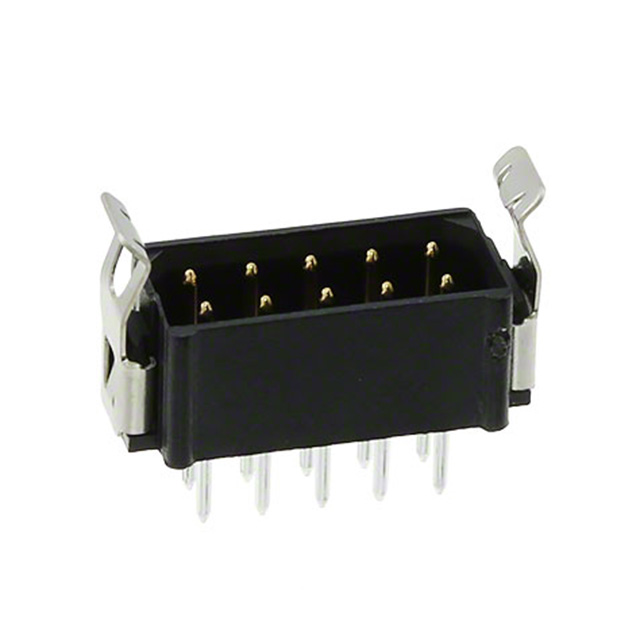

M80-8671022

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.079 (2.00mm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating (AC) :

120V

Shrouding :

Shrouded - 4 Wall

Contact Gender :

Male

Connector Type :

Header

Factory Lead Time :

11 Weeks

Housing Material :

Polyester

Polarization Key :

POLARIZED HOUSING

Max Current Rating :

3A

Number of Conductors :

ONE

Filter Feature :

No

DIN Conformance :

No

Number of Positions Loaded :

All

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

LATCHED

Contact Length - Post :

0.118 3.00mm

Number of Rows :

2

Contact Resistance :

25mOhm

Number Of PCB Rows :

2

Plating Thickness :

30μin

Insulation Material :

Polyester, Glass Filled

Current Rating (Amps) :

2.2A

Contact Finish Thickness - Post :

118.1μin 3.00μm

Mating Contact Pitch :

0.079 inch

Mounting Type :

Through Hole

Orientation :

Straight

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

MIL Conformance :

No

JESD-609 Code :

e0

HTS Code :

8536.69

Contact Finish - Post :

Tin-Lead

Dielectric Withstanding Voltage :

360VAC V

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Insulation Height :

0.219 5.56mm

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Contact Type :

Male Pin

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Phosphor Bronze

Fastening Type :

Latch Lock

Contact Shape :

Circular

Mixed Contacts :

No

Housing Color :

Black

Pbfree Code :

No

Current Rating :

3A

Termination :

Solder

Number of Positions :

10

Durability :

500 Cycles

Pitch - Mating :

0.079 2.00mm

Packaging :

Tube

Series :

Datamate L-Tek

Published :

2005

Reference Standard :

UL

UL Flammability Code :

94V-0

RoHS Status :

Non-RoHS Compliant

Depth :

5.98mm

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

800V

Option :

GENERAL PURPOSE

Length :

14mm

Mount :

Through Hole

IEC Conformance :

No

Style :

Board to Board or Cable

REACH SVHC :

No SVHC

ECCN Code :

EAR99
