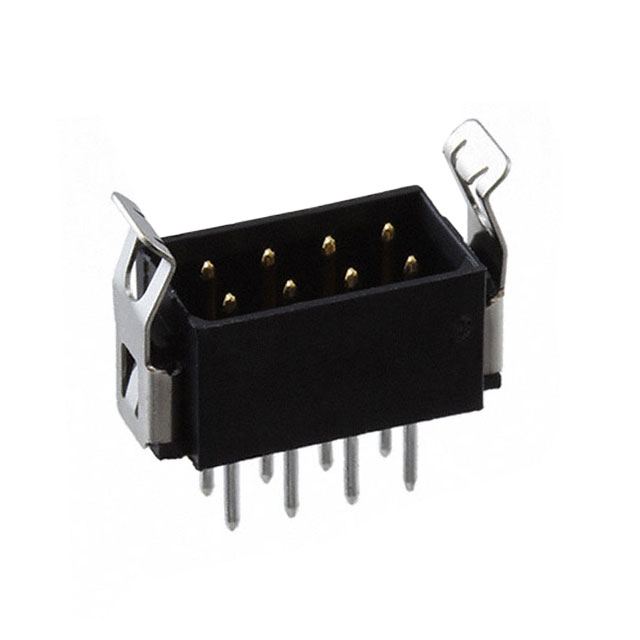

M80-8670822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Resistance :

25mOhm

Contact Finish - Mating :

Gold

Depth :

5.98mm

Current Rating (Amps) :

2.2A

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Voltage - Rated :

800V

Connector Type :

Header

Row Spacing - Mating :

0.079 (2.00mm)

Pitch - Mating :

0.079 2.00mm

MIL Conformance :

No

Pbfree Code :

No

Plating Thickness :

30μin

Max Current Rating :

3A

Filter Feature :

No

Shrouding :

Shrouded - 4 Wall

Length :

12mm

Mixed Contacts :

No

RoHS Status :

Non-RoHS Compliant

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

100000000Ohm

Number Of PCB Rows :

2

Current Rating :

3A

ECCN Code :

EAR99

REACH SVHC :

No SVHC

Insulation Height :

0.219 5.56mm

Number of Positions Loaded :

All

Contact Type :

Male Pin

Contact Gender :

Male

Operating Temperature :

-55°C~125°C

Reach Compliance Code :

not_compliant

Mount :

Through Hole

Max Voltage Rating (AC) :

120V

Housing Color :

Black

Contact Finish - Post :

Tin-Lead

Housing Material :

Polyester

JESD-609 Code :

e0

Durability :

500 Cycles

Termination :

Solder

Packaging :

Tube

Orientation :

Straight

Fastening Type :

Latch Lock

Published :

2005

Contact Length - Post :

0.118 3.00mm

IEC Conformance :

No

Option :

GENERAL PURPOSE

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Insulation Material :

Polyester, Glass Filled

Contact Shape :

Circular

Series :

Datamate L-Tek

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Board or Cable

Mounting Type :

Through Hole

Number of Positions :

8

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Contact Pitch :

0.079 inch

Additional Feature :

LATCHED

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Thickness - Post :

118.1μin 3.00μm

Reference Standard :

UL

Number of Conductors :

ONE

Dielectric Withstanding Voltage :

360VAC V

Factory Lead Time :

11 Weeks

DIN Conformance :

No
