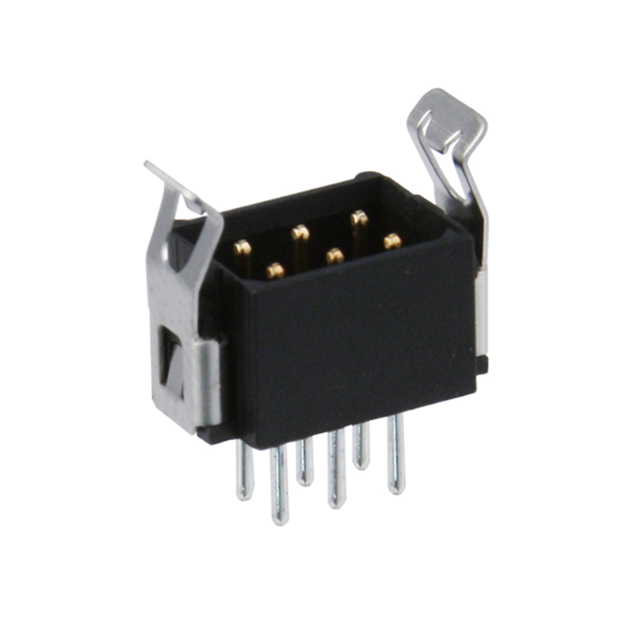

M80-8670622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Pbfree Code :

No

Contact Resistance :

25mOhm

Factory Lead Time :

11 Weeks

Contact Finish - Post :

Tin-Lead

Packaging :

Tube

Connector Type :

Header

Pitch - Mating :

0.079 2.00mm

Plating Thickness :

30μin

Number of Rows :

2

RoHS Status :

Non-RoHS Compliant

Number Of PCB Rows :

2

Depth :

5.98mm

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Current Rating (Amps) :

2.2A

Series :

Datamate L-Tek

Fastening Type :

Latch Lock

Mating Contact Pitch :

0.079 inch

UL Flammability Code :

94V-0

MIL Conformance :

No

Mount :

Through Hole

Shrouding :

Shrouded - 4 Wall

Insulation Material :

Polyester, Glass Filled

Reliability :

COMMERCIAL

Termination :

Solder

Contact Gender :

Male

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Current Rating :

3A

Additional Feature :

LATCHED

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

Gold

Number of Conductors :

ONE

JESD-609 Code :

e0

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Housing Color :

Black

Insulation Height :

0.219 5.56mm

Row Spacing - Mating :

0.079 (2.00mm)

Housing Material :

Polyester

Contact Material :

Phosphor Bronze

Contact Type :

Male Pin

Voltage - Rated :

800V

IEC Conformance :

No

Number of Positions :

6

Current Rating :

3A

Style :

Board to Board or Cable

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

All

Durability :

500 Cycles

Max Voltage Rating (AC) :

120V

Length :

10mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Mixed Contacts :

No

Published :

2006

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.118 3.00mm

DIN Conformance :

No

Orientation :

Straight

Insulation Resistance :

100000000Ohm

Reference Standard :

UL

Filter Feature :

No

REACH SVHC :

No SVHC

Mounting Type :

Through Hole

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Shape :

Circular

Radiation Hardening :

No
