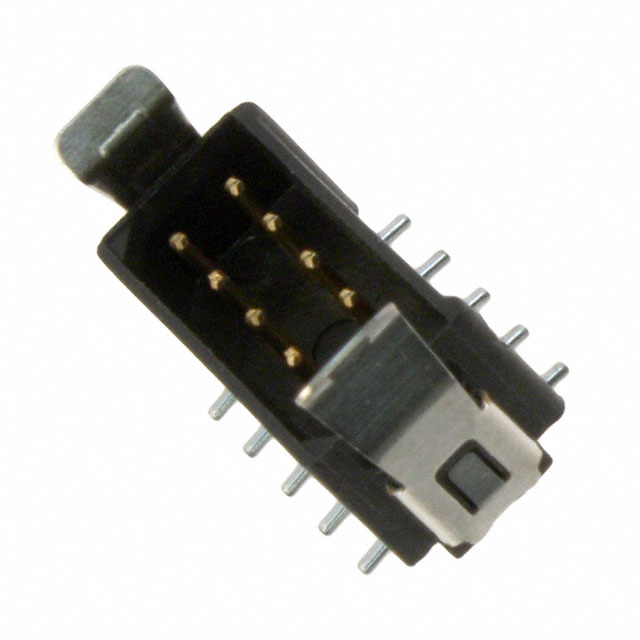

M80-8271042

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Post :

Tin

PCB Contact Row Spacing :

4.8006 mm

Connector Type :

Header

Option :

GENERAL PURPOSE

Published :

2006

Number of Conductors :

ONE

Number of Rows :

2

UL Flammability Code :

94V-0

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Voltage - Rated DC :

120V

IEC Conformance :

No

Contact Material :

Phosphor Bronze

Contact Shape :

Circular

ECCN Code :

EAR99

Pitch - Mating :

0.079 2.00mm

Radiation Hardening :

No

Series :

Datamate L-Tek

Number of Positions Loaded :

All

MIL Conformance :

No

Pbfree Code :

yes

Termination :

Solder

Current Rating (Amps) :

2.2A

Factory Lead Time :

5 Weeks

HTS Code :

8536.69.40.40

Style :

Board to Board or Cable

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

2

Fastening Type :

Friction Lock

Number of Positions :

10

Mount :

Surface Mount

RoHS Status :

ROHS3 Compliant

Max Current Rating :

3A

Voltage - Rated :

800V

Contact Resistance :

25mOhm

Contact Gender :

Male

Contact Finish - Mating :

Gold

Current Rating :

3A

Insulation Resistance :

100MOhm

Dielectric Withstanding Voltage :

360VAC V

Max Voltage Rating (AC) :

120V

Durability :

500 Cycles

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Packaging :

Tube

Insulation Height :

0.205 5.20mm

REACH SVHC :

No SVHC

Housing Color :

Black

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

Additional Feature :

LATCHED

Filter Feature :

No

Reliability :

COMMERCIAL

Total Number of Contacts :

10

JESD-609 Code :

e3

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Depth :

5.96mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Mating Contact Pitch :

0.079 inch

Mounting Type :

Surface Mount

Row Spacing - Mating :

0.079 (2.00mm)

Length :

14.1mm

Orientation :

Straight

Material :

Nylon

Housing Material :

Polyamide

Plating Thickness :

30μin
