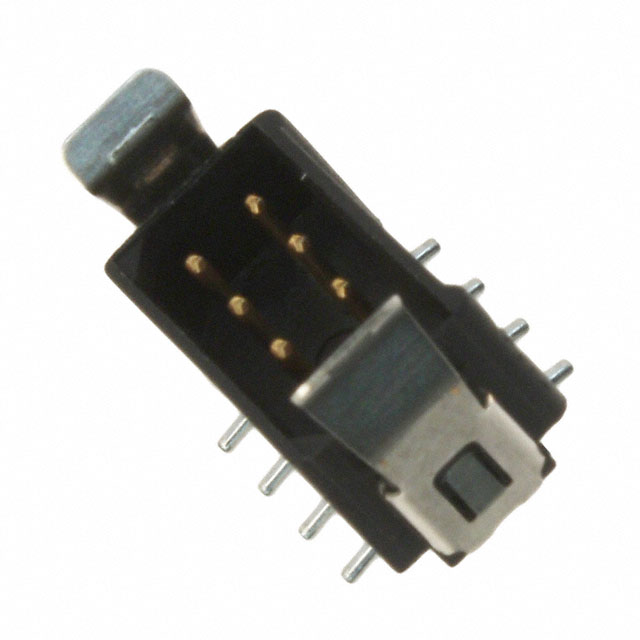

M80-8270842

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Max Voltage Rating (AC) :

120V

Number of Conductors :

ONE

Published :

2006

REACH SVHC :

No SVHC

Row Spacing - Mating :

0.079 (2.00mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

LATCHED

PCB Contact Pattern :

RECTANGULAR

Radiation Hardening :

No

Durability :

500 Cycles

Filter Feature :

No

Voltage - Rated :

800V

Total Number of Contacts :

8

Contact Material :

Phosphor Bronze

Material :

Polyamide

RoHS Status :

ROHS3 Compliant

Contact Finish - Post :

Tin

Number of Rows :

2

Polarization Key :

POLARIZED HOUSING

Current Rating (Amps) :

2.2A

Insulation Height :

0.205 5.20mm

Pitch - Mating :

0.079 2.00mm

DIN Conformance :

No

Contact Gender :

Male

Number of Positions :

8

Length :

11.6mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Operating Temperature :

-55°C~125°C

Option :

GENERAL PURPOSE

Contact Resistance :

25mOhm

Mounting Type :

Surface Mount

Factory Lead Time :

4 Weeks

Mount :

Surface Mount

Number Of PCB Rows :

2

Termination :

Solder

Orientation :

Straight

Style :

Board to Board or Cable

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Flammability Rating :

UL94 V-0

Fastening Type :

Friction Lock

Working Voltage :

120V

Series :

Datamate L-Tek

UL Flammability Code :

94V-0

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Contact Finish - Mating :

Gold

Insulation Resistance :

100MOhm

Lead Pitch :

2mm

Shrouding :

Shrouded - 4 Wall

Housing Color :

Black

Packaging :

Tube

Connector Type :

Header

Mixed Contacts :

No

Mating Contact Pitch :

0.079 inch

Contact Finish Thickness - Post :

118.1μin 3.00μm

JESD-609 Code :

e3

Reference Standard :

UL

Plating Thickness :

30μin

Pbfree Code :

yes

Max Current Rating :

3A

IEC Conformance :

No

Contact Type :

Male Pin

Dielectric Withstanding Voltage :

360VAC V

Depth :

7.5mm

Current Rating :

3A

MIL Conformance :

No

Contact Shape :

Circular

Reliability :

COMMERCIAL

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled
