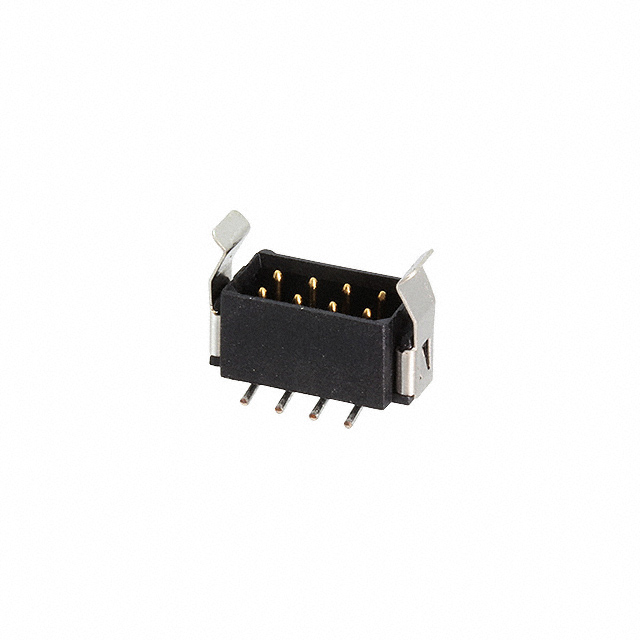

M80-8270822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

RoHS Status :

Non-RoHS Compliant

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Phosphor Bronze

MIL Conformance :

No

Row Spacing - Mating :

0.079 (2.00mm)

JESD-609 Code :

e0

Mixed Contacts :

No

Contact Finish - Mating :

Gold

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Type :

Male Pin

Mount :

Surface Mount

Shrouding :

Shrouded - 4 Wall

Housing Material :

Polyamide

Insulation Resistance :

100000000Ohm

Mating Contact Pitch :

0.079 inch

Published :

2005

DIN Conformance :

No

Packaging :

Tube

Contact Gender :

Male

Reference Standard :

UL

Additional Feature :

LATCHED

Mounting Type :

Surface Mount

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number of Conductors :

ONE

Pitch - Mating :

0.079 2.00mm

Polarization Key :

POLARIZED HOUSING

Dielectric Withstanding Voltage :

360VAC V

Operating Temperature :

-55°C~125°C

Connector Type :

Header

Number of Rows :

2

Reliability :

COMMERCIAL

Contact Finish - Post :

Tin-Lead

Durability :

500 Cycles

Current Rating (Amps) :

2.2A

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Filter Feature :

No

Option :

GENERAL PURPOSE

Voltage - Rated :

800V

Series :

Datamate L-Tek

Number of Positions Loaded :

All

Insulation Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.205 5.20mm

Fastening Type :

Friction Lock

Style :

Board to Board or Cable

Total Number of Contacts :

8

Contact Shape :

Circular

Current Rating :

3A

Pbfree Code :

No

Number Of PCB Rows :

2

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Plating Thickness :

30μin

Body Length or Diameter :

0.476 inch

Number of Positions :

8

IEC Conformance :

No

Reach Compliance Code :

not_compliant

ECCN Code :

EAR99

Termination :

Solder
