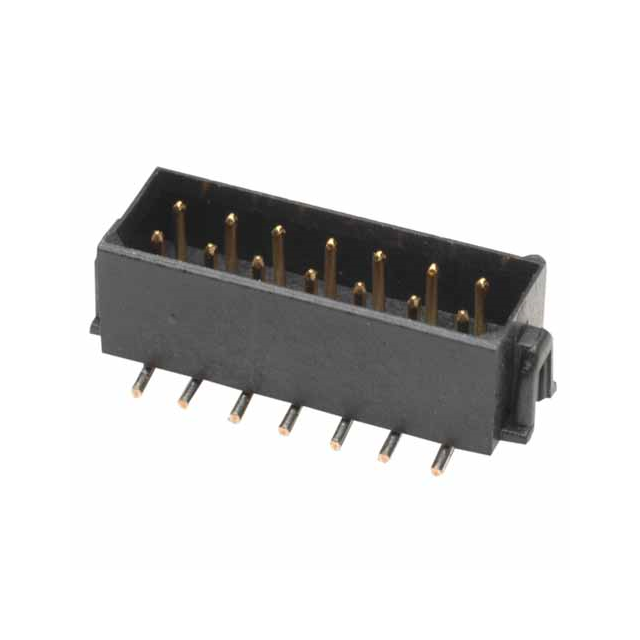

M80-8261442P

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Termination :

Solder

Withdrawl Force-Min :

.1946 N

Contact Shape :

Circular

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.079 2.00mm

Row Spacing - Mating :

0.079 (2.00mm)

Feature :

Pick and Place

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

PCB Contact Pattern :

RECTANGULAR

Current Rating (Amps) :

2.2A

HTS Code :

8536.69.40.40

Contact Material :

Phosphor Bronze

Series :

Datamate L-Tek

Plating Thickness :

30μin

Style :

Board to Board or Cable

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Insulation Resistance :

100000000Ohm

ECCN Code :

EAR99

Connector Type :

Header

MIL Conformance :

No

Shrouding :

Shrouded - 4 Wall

DIN Conformance :

No

Number of Positions Loaded :

All

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Contact Finish - Post :

Tin

Polarization Key :

POLARIZED KEY

Contact Finish Thickness - Mating :

29.5μin 0.75μm

IEC Conformance :

No

Insulation Height :

0.205 5.20mm

Reference Standard :

UL

PCB Contact Row Spacing :

4.8006 mm

Voltage - Rated :

800V

Packaging :

Tube

Reliability :

COMMERCIAL

Insulation Color :

Black

Mixed Contacts :

No

Fastening Type :

Latch Holder

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Body Length or Diameter :

0.691 inch

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

Additional Feature :

RoHS Compliant

Number of Conductors :

ONE

Contact Finish Thickness - Post :

118.1μin 3.00μm

Durability :

500 Cycles

Contact Type :

Male Pin

Total Number of Contacts :

14

Number of Rows :

2

Mounting Type :

Surface Mount

Number of Positions :

14

Factory Lead Time :

11 Weeks

Pbfree Code :

yes

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.079 inch

Number Of PCB Rows :

2

Mounting Option 1 :

LOCKING
