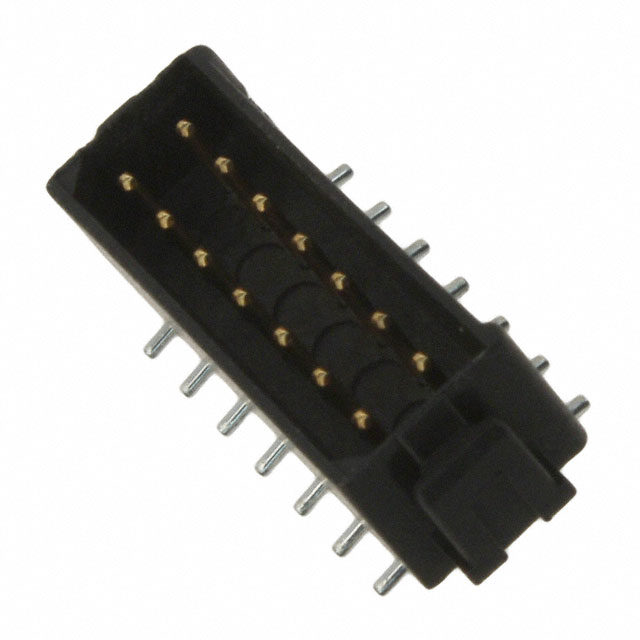

M80-8261442

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

PCB Contact Row Spacing :

4.8006 mm

Max Voltage Rating (AC) :

120V

Lead Pitch :

2mm

HTS Code :

8536.69.40.40

Material Flammability Rating :

UL94 V-0

Contact Shape :

Circular

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Pbfree Code :

yes

Contact Resistance :

25mOhm

Option :

GENERAL PURPOSE

Total Number of Contacts :

14

Contact Finish - Mating :

Gold

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

14

Flammability Rating :

UL94 V-0

Series :

Datamate L-Tek

Termination :

Solder

Mating Contact Pitch :

0.079 inch

Fastening Type :

Latch Holder

Durability :

500 Cycles

DIN Conformance :

No

Length :

17.55mm

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Number of Conductors :

ONE

Insulation Height :

0.205 5.20mm

Mount :

Surface Mount

Plating Thickness :

30μin

Additional Feature :

RoHS Compliant

IEC Conformance :

No

Number of Rows :

2

Withdrawl Force-Min :

.1946 N

Reference Standard :

UL

Current Rating :

3A

UL Flammability Code :

94V-0

Published :

2013

Working Voltage :

120V

Max Current Rating :

3A

Mixed Contacts :

No

Number of Positions Loaded :

All

Insulation Resistance :

100MOhm

Housing Color :

Black

Radiation Hardening :

No

Current Rating (Amps) :

2.2A

Filter Feature :

No

Contact Finish - Post :

Tin

Depth :

5.96mm

Row Spacing - Mating :

0.079 (2.00mm)

Connector Type :

PLUG

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount

Packaging :

Tube

Number Of PCB Rows :

2

Shrouding :

Shrouded - 4 Wall

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED KEY

Pitch - Mating :

0.079 2.00mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Material :

Phosphor Bronze

MIL Conformance :

No

Orientation :

Straight

Reliability :

COMMERCIAL

Voltage - Rated :

800V

Contact Type :

Male Pin

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Style :

Board to Board or Cable

Operating Temperature :

-55°C~125°C

ECCN Code :

EAR99

Material :

Polyamide

Factory Lead Time :

11 Weeks

JESD-609 Code :

e3

Contact Gender :

Male
