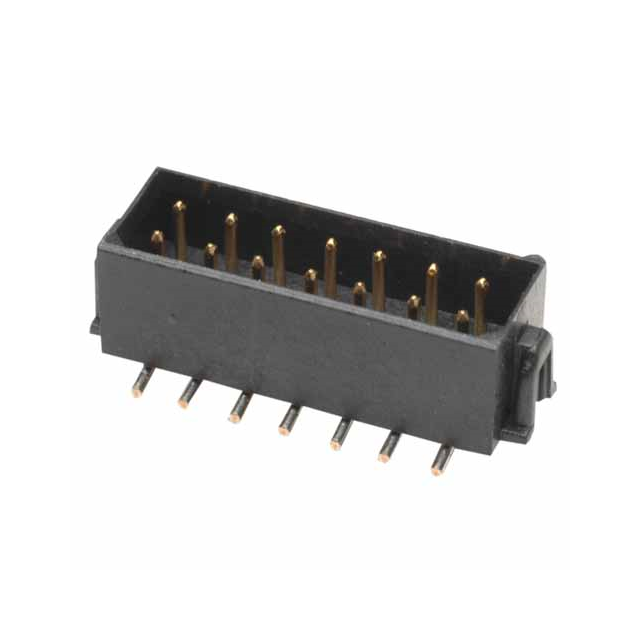

M80-8261422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

Voltage - Rated :

800V

Housing Material :

Polyamide

Series :

Datamate L-Tek

Contact Finish - Mating :

Gold

Current Rating :

3A

Insulation Height :

0.205 5.20mm

Pitch - Mating :

0.079 2.00mm

Contact Material :

Phosphor Bronze

Contact Finish Thickness - Post :

118.1μin 3.00μm

Polarization Key :

POLARIZED KEY

Mounting Type :

Surface Mount

Contact Gender :

Male

Row Spacing - Mating :

0.079 (2.00mm)

ECCN Code :

EAR99

Packaging :

Tube

Reach Compliance Code :

not_compliant

Current Rating (Amps) :

2.2A

Contact Shape :

Circular

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

500 Cycles

Mount :

Surface Mount

Number of Conductors :

ONE

HTS Code :

8536.69.40.40

Withdrawl Force-Min :

.1946 N

RoHS Status :

Non-RoHS Compliant

PCB Contact Row Spacing :

4.8006 mm

Total Number of Contacts :

14

Contact Finish - Post :

Tin-Lead

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Fastening Type :

Latch Holder

IEC Conformance :

No

Insulation Color :

Black

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Option :

GENERAL PURPOSE

Termination :

Solder

Operating Temperature :

-55°C~125°C

Lead Pitch :

2mm

Shrouding :

Shrouded - 4 Wall

DIN Conformance :

No

Connector Type :

PLUG

MIL Conformance :

No

JESD-609 Code :

e0

Contact Type :

Male Pin

Plating Thickness :

30μin

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Number of Rows :

2

Filter Feature :

No

Published :

2005

Insulation Resistance :

100000000Ohm

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Board or Cable

Number of Positions :

14

Pbfree Code :

No

Body Length or Diameter :

0.691 inch

Factory Lead Time :

11 Weeks

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.079 inch

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Reference Standard :

UL

Number of Positions Loaded :

All
