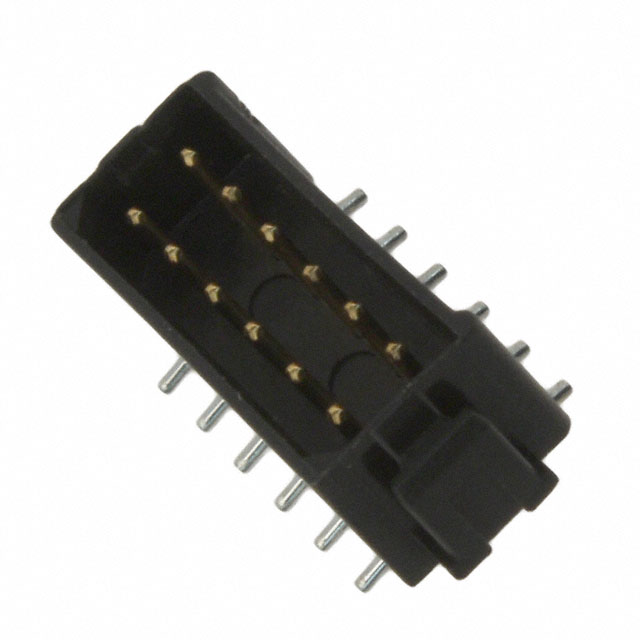

M80-8261242

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Max Voltage Rating (AC) :

120V

Series :

Datamate L-Tek

Radiation Hardening :

No

Pbfree Code :

yes

Total Number of Contacts :

12

Number of Positions :

12

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Withdrawl Force-Min :

.1946 N

Voltage - Rated :

800V

HTS Code :

8536.69.40.40

Insulation Resistance :

100MOhm

Pitch - Mating :

0.079 2.00mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Depth :

5.96mm

Connector Type :

PLUG

Row Spacing - Mating :

0.079 (2.00mm)

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Additional Feature :

RoHS Compliant

Mount :

Surface Mount

Number of Conductors :

ONE

PCB Contact Row Spacing :

4.8006 mm

Contact Resistance :

25mOhm

Mixed Contacts :

No

Durability :

500 Cycles

Reference Standard :

UL

Contact Type :

Male Pin

Contact Material :

Phosphor Bronze

Lead Pitch :

2mm

Filter Feature :

No

Current Rating (Amps) :

2.2A

Factory Lead Time :

11 Weeks

JESD-609 Code :

e3

Mating Contact Pitch :

0.079 inch

Number Of PCB Rows :

2

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Number of Positions Loaded :

All

REACH SVHC :

No SVHC

Material :

Polyamide

Termination :

Solder

Max Current Rating :

3A

Style :

Board to Board or Cable

Packaging :

Tube

Current Rating :

3A

MIL Conformance :

No

Insulation Height :

0.205 5.20mm

PCB Contact Pattern :

RECTANGULAR

Length :

15.55mm

Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED KEY

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Contact Shape :

Circular

DIN Conformance :

No

Mounting Type :

Surface Mount

Housing Color :

Black

UL Flammability Code :

94V-0

Number of Rows :

2

Orientation :

Straight

Working Voltage :

120V

IEC Conformance :

No

Plating Thickness :

30μin

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin

Fastening Type :

Latch Holder

Contact Finish Thickness - Mating :

29.5μin 0.75μm

ECCN Code :

EAR99

Published :

2009
