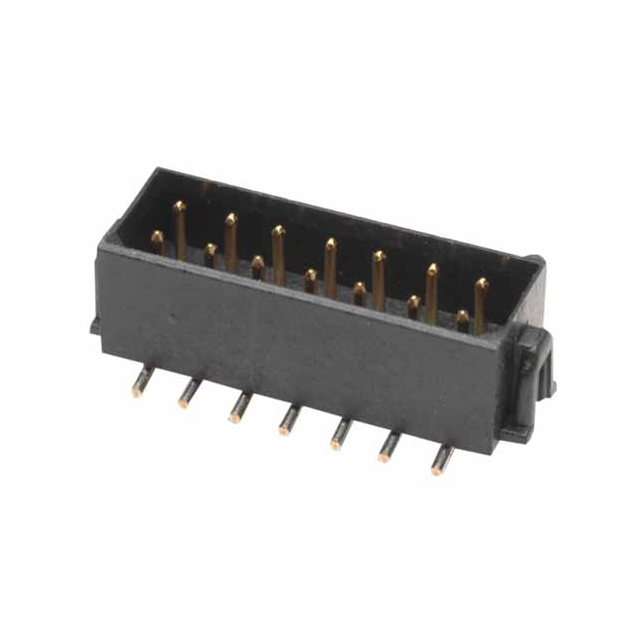

M80-8260445

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2008

Style :

Board to Board or Cable

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Termination :

Solder

Number of Positions Loaded :

All

DIN Conformance :

No

Number of Rows :

2

Current Rating (Amps) :

2.2A

Plating Thickness :

30μin

Voltage - Rated :

800V

JESD-609 Code :

e4

Series :

Datamate L-Tek

Contact Type :

Male Pin

Insulation Height :

0.205 5.20mm

Insulation Color :

Black

Polarization Key :

POLARIZED KEY

Durability :

500 Cycles

Operating Temperature :

-55°C~125°C

Mounting Option 1 :

LOCKING

Total Number of Contacts :

4

Additional Feature :

RoHS Compliant

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Connector Type :

PLUG

Shrouding :

Shrouded - 4 Wall

IEC Conformance :

No

Insulation Resistance :

100000000Ohm

Pitch - Mating :

0.079 2.00mm

Number of Conductors :

ONE

Mating Contact Pitch :

0.079 inch

Factory Lead Time :

65 Weeks

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Phosphor Bronze

Mixed Contacts :

No

Pbfree Code :

yes

Packaging :

Bulk

Mounting Type :

Surface Mount

Filter Feature :

No

Contact Finish Thickness - Post :

29.5μin 0.75μm

MIL Conformance :

No

Row Spacing - Mating :

0.079 (2.00mm)

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Fastening Type :

Latch Holder

Number of Positions :

4

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Contact Shape :

Circular
