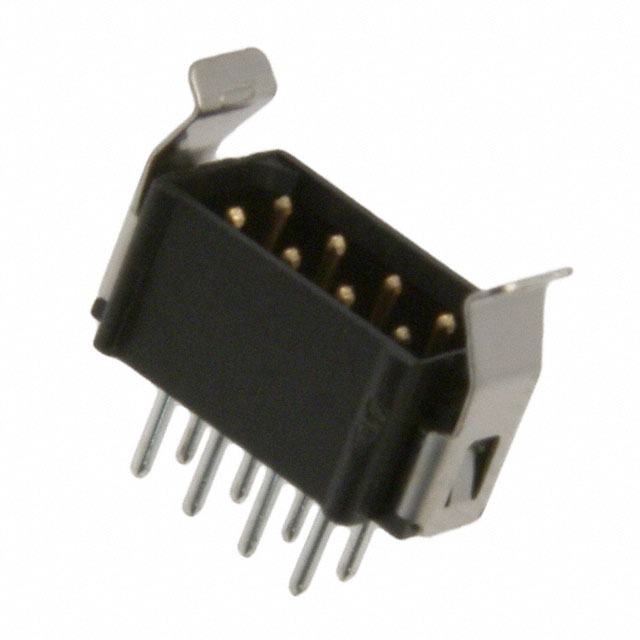

M80-8150822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Positions :

8

Operating Temperature :

-55°C~125°C

JESD-609 Code :

e0

Max Voltage Rating (AC) :

120V

Contact Type :

Male Pin

Housing Color :

Black

Connector Type :

PLUG

UL Flammability Code :

94V-0

Reference Standard :

UL

Contact Finish - Post :

Tin-Lead

Fastening Type :

Friction Lock

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Factory Lead Time :

6 Weeks

Reach Compliance Code :

not_compliant

Termination :

Solder

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

RoHS Status :

Non-RoHS Compliant

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

DIN Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance :

100000000Ohm

Shrouding :

Shrouded - 4 Wall

Number of Positions Loaded :

All

Insulation Material :

Polyester, Glass Filled

Filter Feature :

No

Insulation Height :

0.219 5.56mm

Mount :

Through Hole

Series :

Datamate L-Tek

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Resistance :

25mOhm

Option :

GENERAL PURPOSE

Number of Rows :

2

Mounting Type :

Through Hole

Published :

2009

MIL Conformance :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.118 3.00mm

Pbfree Code :

No

Length :

12mm

Additional Feature :

LATCHED, POLARIZED, SHROUDED

Current Rating (Amps) :

2.2A

Depth :

5.98mm

Plating Thickness :

30μin

Mixed Contacts :

No

Max Current Rating :

3A

Housing Material :

Polyester

Row Spacing - Mating :

0.079 (2.00mm)

IEC Conformance :

No

Reliability :

COMMERCIAL

Packaging :

Tube

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

REACH SVHC :

No SVHC

Current Rating :

3A

Orientation :

Straight

Pitch - Mating :

0.079 2.00mm

Durability :

500 Cycles

Number Of PCB Rows :

2

Style :

Board to Board or Cable

Contact Shape :

Circular

Mating Contact Pitch :

0.079 inch

Contact Gender :

Male

Voltage - Rated :

800V
