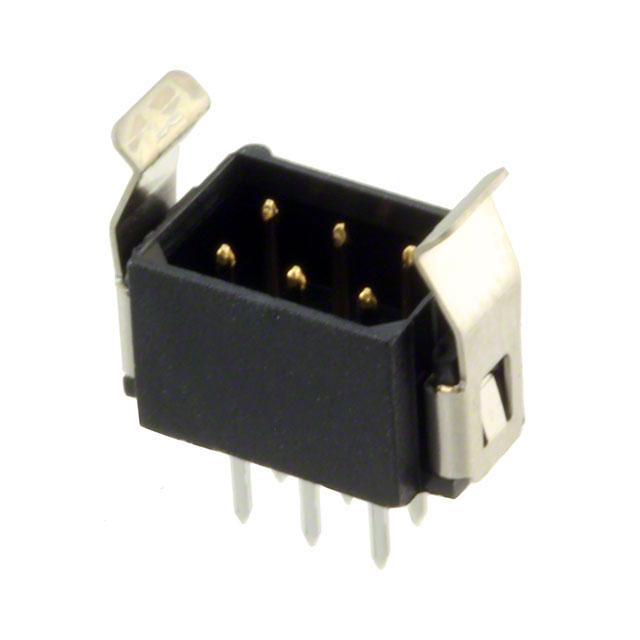

M80-8150622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Max Current Rating :

3A

Current Rating :

3A

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Pitch - Mating :

0.079 2.00mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Published :

2009

Depth :

5.98mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

RoHS Status :

Non-RoHS Compliant

Contact Finish - Post :

Tin-Lead

REACH SVHC :

No SVHC

Filter Feature :

No

Pbfree Code :

No

Number of Positions :

6

Current Rating (Amps) :

2.2A

Insulation Resistance :

100000000Ohm

Contact Material :

Phosphor Bronze

Housing Color :

Black

Contact Type :

Male Pin

Number of Rows :

2

Contact Finish - Mating :

Gold

Termination :

Solder

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Mating Contact Pitch :

0.079 inch

Fastening Type :

Friction Lock

Shrouding :

Shrouded - 4 Wall

Mount :

Through Hole

Reach Compliance Code :

not_compliant

Insulation Height :

0.219 5.56mm

Plating Thickness :

30μin

Contact Resistance :

25mOhm

Polarization Key :

POLARIZED HOUSING

Mixed Contacts :

No

Max Voltage Rating (AC) :

120V

Orientation :

Straight

JESD-609 Code :

e0

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Board or Cable

ECCN Code :

EAR99

Packaging :

Tube

DIN Conformance :

No

Additional Feature :

LATCHED, POLARIZED, SHROUDED

Contact Length - Post :

0.118 3.00mm

Length :

10mm

Contact Shape :

Circular

PCB Contact Pattern :

RECTANGULAR

Row Spacing - Mating :

0.079 (2.00mm)

Housing Material :

Polyester

Reference Standard :

UL

Durability :

500 Cycles

Number of Conductors :

ONE

Contact Finish Thickness - Post :

118.1μin 3.00μm

UL Flammability Code :

94V-0

Contact Gender :

Male

IEC Conformance :

No

Voltage - Rated :

800V

MIL Conformance :

No

Connector Type :

PLUG

Series :

Datamate L-Tek

Option :

GENERAL PURPOSE

Insulation Material :

Polyester, Glass Filled

Mounting Type :

Through Hole

Factory Lead Time :

8 Weeks
