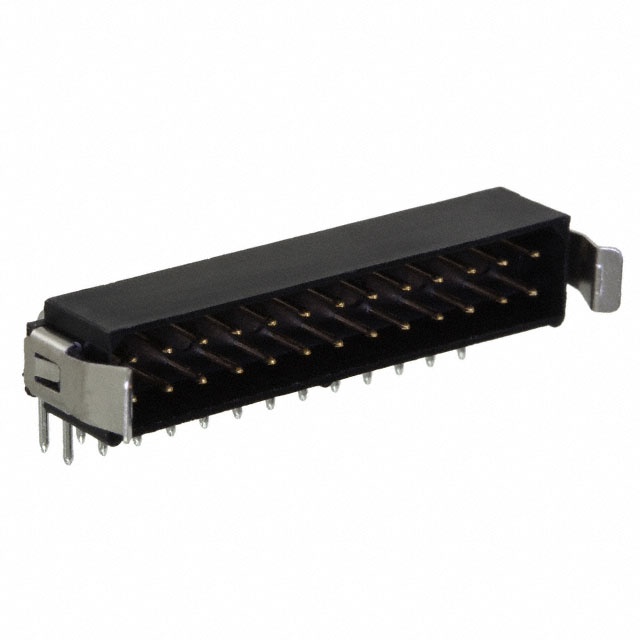

M80-8142622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Series :

Datamate L-Tek

Contact Finish - Post :

Tin-Lead

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Reliability :

COMMERCIAL

Body Depth :

0.318 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Phosphor Bronze

Contact Type :

Male Pin

Insulation Height :

0.235 5.97mm

Number of Positions :

26

Mating Contact Pitch :

0.079 inch

Current Rating :

3A

Contact Gender :

Male

Number of Conductors :

ONE

Fastening Type :

Friction Lock

Option :

GENERAL PURPOSE

Contact Shape :

Circular

ECCN Code :

EAR99

Factory Lead Time :

6 Weeks

Housing Material :

Polyester

Style :

Board to Board or Cable

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Row Spacing - Mating :

0.079 (2.00mm)

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

REACH SVHC :

Unknown

Mixed Contacts :

No

Mount :

Through Hole

Contact Length - Post :

0.118 3.00mm

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Length - Termination :

0.118 inch

Packaging :

Tube

Reference Standard :

UL

JESD-609 Code :

e0

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

DIN Conformance :

No

Mounting Type :

Through Hole, Right Angle

Contact Finish - Mating :

Gold

IEC Conformance :

No

Plating Thickness :

30μin

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

100000000Ohm

Shrouding :

Shrouded - 4 Wall

Published :

2008

Feature :

Strain Relief Clips

Termination :

Solder

Number Of PCB Rows :

2

Reach Compliance Code :

not_compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature :

-55°C~125°C

Body Length or Diameter :

1.181 inch

Connector Type :

PLUG

Insulation Color :

Black

Pbfree Code :

No

Additional Feature :

LATCHED

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

Current Rating (Amps) :

2.2A

Durability :

500 Cycles

Contact Finish Thickness - Post :

118.1μin 3.00μm

Voltage - Rated :

120V

RoHS Status :

Non-RoHS Compliant
