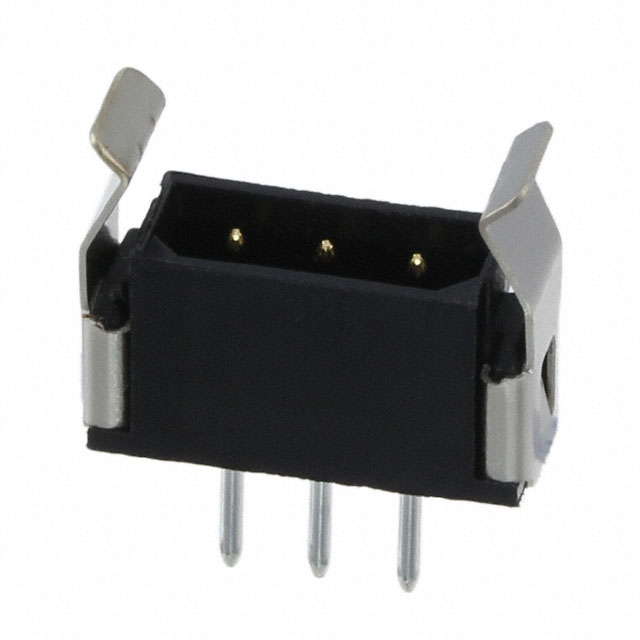

M80-8050322

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

RoHS Status :

Non-RoHS Compliant

UL Flammability Code :

94V-0

Housing Material :

Polyester

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Series :

Datamate L-Tek

Number Of PCB Rows :

1

Contact Resistance :

25mOhm

Contact Plating :

Gold, Tin

Contact Length - Post :

0.118 3.00mm

Durability :

500 Cycles

Operating Temperature :

-55°C~125°C

Reference Standard :

UL

Insulation Color :

Black

Additional Feature :

LATCHED

Contact Material :

Phosphor Bronze

Insulation Material :

Polyester, Glass Filled

Depth :

3.98mm

Max Voltage Rating (AC) :

800V

Orientation :

Straight

Shrouding :

Shrouded - 4 Wall

Mixed Contacts :

No

Pitch - Mating :

0.079 2.00mm

Contact Shape :

Circular

Max Current Rating :

3A

Number of Rows :

1

Termination :

Solder

Mating Contact Pitch :

0.079 inch

IEC Conformance :

No

Mounting Type :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Terminal Pitch :

2mm

Length :

10mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Finish - Mating :

Gold

DIN Conformance :

No

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

Contact Finish - Post :

Tin-Lead

Style :

Board to Board or Cable

Published :

2012

MIL Conformance :

No

Insertion Force-Max :

2.78 N

Plating Thickness :

29μin

Current Rating (Amps) :

2.2A

Packaging :

Tube

Filter Feature :

No

Insulation Height :

0.219 5.56mm

Contact Type :

Male Pin

Contact Gender :

Male

Package / Case :

SIL

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number of Positions Loaded :

All

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Friction Lock

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Number of Positions :

3

Number of Conductors :

ONE

Radiation Hardening :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Header

Pbfree Code :

No

JESD-609 Code :

e0

Mount :

Through Hole

Factory Lead Time :

6 Weeks
