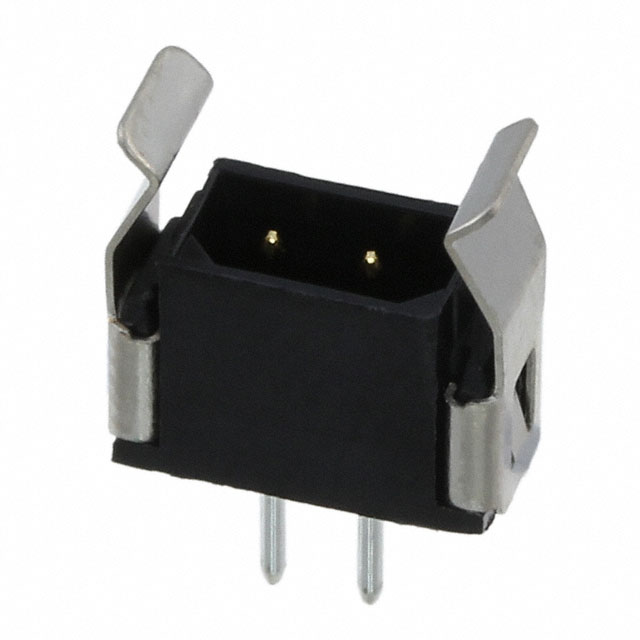

M80-8050222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Material :

Polyester, Glass Filled

Number Of PCB Rows :

1

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Mating Contact Pitch :

0.079 inch

HTS Code :

8536.69.40.40

Mount :

Through Hole

Contact Material :

Phosphor Bronze

Durability :

500 Cycles

MIL Conformance :

No

Housing Material :

Polyester

Contact Resistance :

25mOhm

Contact Gender :

Male

Packaging :

Tube

Reliability :

COMMERCIAL

REACH SVHC :

Unknown

Max Voltage Rating (AC) :

800V

Pbfree Code :

No

Number of Positions Loaded :

All

Connector Type :

Header

Termination :

Solder

ECCN Code :

EAR99

Reference Standard :

UL

Fastening Type :

Friction Lock

Option :

GENERAL PURPOSE

Contact Finish Thickness - Mating :

29.5μin 0.75μm

IEC Conformance :

No

DIN Conformance :

No

Mounting Type :

Through Hole

Contact Finish - Post :

Tin-Lead

Number of Conductors :

ONE

Additional Feature :

LATCHED

Contact Finish Thickness - Post :

118.1μin 3.00μm

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Insulation Color :

Black

Series :

Datamate L-Tek

Insulation Height :

0.219 5.56mm

Contact Finish - Mating :

Gold

Contact Plating :

Gold, Tin

Length :

8mm

Contact Length - Post :

0.118 3.00mm

Number of Positions :

2

Style :

Board to Board or Cable

Orientation :

Straight

Filter Feature :

No

UL Flammability Code :

94V-0

Contact Shape :

Circular

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

3A

Pitch - Mating :

0.079 2.00mm

Package / Case :

SIL

Reach Compliance Code :

not_compliant

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Published :

2006

Current Rating (Amps) :

2.2A

Factory Lead Time :

6 Weeks

Number of Rows :

1

JESD-609 Code :

e0

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

Non-RoHS Compliant

Depth :

3.98mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
