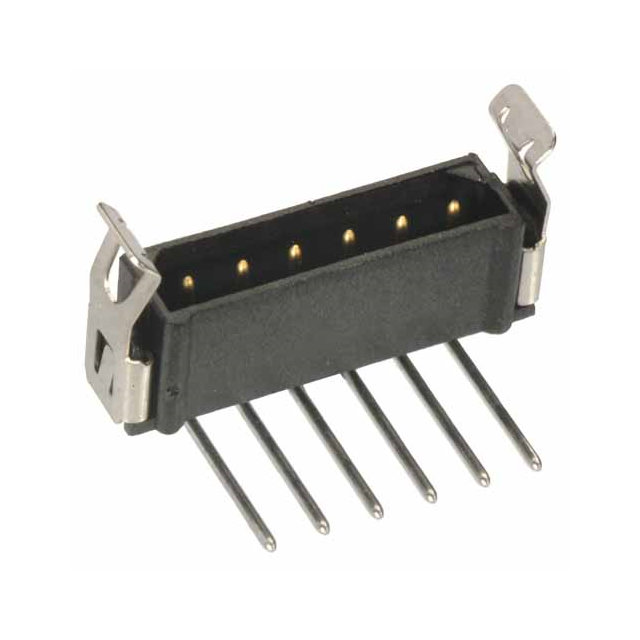

M80-7920422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Additional Feature :

LATCHED

Mounting Option 2 :

LOCKING

Insertion Force-Max :

2.78 N

Terminal Pitch :

2mm

Body/Shell Style :

PLUG

Connector Type :

BOARD CONNECTOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.252 inch

JESD-609 Code :

e0

Number of Conductors :

ONE

HTS Code :

8536.69.40.40

Mounting Type :

BOARD

Mounting Option 1 :

Latch

Number Of PCB Rows :

1

Filter Feature :

No

Durability :

500 Cycles

Insulator Color :

Black

Length - Termination :

0.177 inch

Total Number of Contacts :

4

Reference Standard :

UL

Polarization Key :

POLARIZED KEY

Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Reach Compliance Code :

Compliant

DIN Conformance :

No

Rated Current (Signal) :

3A

Insulation Material :

Polyamide

Plating Thickness :

30μin

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

15 Weeks

Operating Temperature (Min) :

-55°C

Body Breadth :

0.156 inch

Termination Type :

Solder

Insulation Resistance :

100000000Ohm

Reliability :

COMMERCIAL

Pbfree Code :

No

Withdrawl Force-Min :

.1946 N

IEC Conformance :

No

Contact Resistance :

25mOhm

Option :

GENERAL PURPOSE

Contact Gender :

Male

Contact Material :

Phosphor Bronze

Number of Rows :

1

Body Length or Diameter :

0.476 inch

PCB Contact Pattern :

RECTANGULAR

Contact Style :

RND PIN-SKT

UL Flammability Code :

94V-0

MIL Conformance :

No

Contact Finish - Mating :

GOLD (30)

Operating Temperature (Max) :

125°C

Mounting Style :

RIGHT ANGLE

ECCN Code :

EAR99
