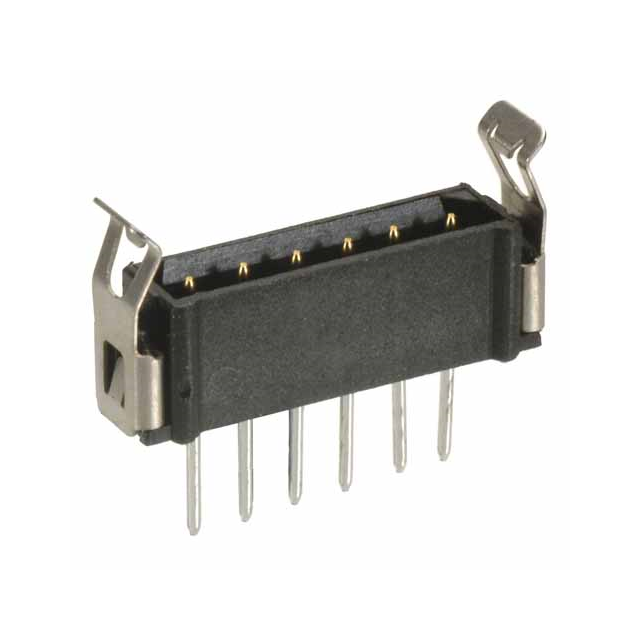

M80-7820322

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

RoHS Status :

Non-RoHS Compliant

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Mounting Option 1 :

Latch

Reach Compliance Code :

Compliant

Contact Finish - Mating :

GOLD (30)

Body/Shell Style :

Receptacle

Rated Current (Signal) :

3A

Pbfree Code :

No

Factory Lead Time :

15 Weeks

Mounting Type :

BOARD

Reference Standard :

UL

Plating Thickness :

30μin

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

No

Contact Pattern :

RECTANGULAR

Terminal Pitch :

2mm

Contact Resistance :

25mOhm

Termination Type :

Solder

JESD-609 Code :

e0

Number Of PCB Rows :

1

Number of Rows :

1

Connector Type :

BOARD CONNECTOR

Body Depth :

0.218 inch

Option :

GENERAL PURPOSE

Contact Gender :

Male

HTS Code :

8536.69.40.40

Length - Termination :

0.177 inch

Operating Temperature (Max) :

125°C

Filter Feature :

No

ECCN Code :

EAR99

Mounting Option 2 :

LOCKING

Mounting Style :

Straight

Insulation Material :

Polyamide

Insulation Resistance :

100000000Ohm

Durability :

500 Cycles

Body Breadth :

0.156 inch

Total Number of Contacts :

3

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Contact Material :

Phosphor Bronze

MIL Conformance :

No

Additional Feature :

LATCHED

IEC Conformance :

No

Operating Temperature (Min) :

-55°C

UL Flammability Code :

94V-0

Insulator Color :

Black

Body Length or Diameter :

0.398 inch

Number of Conductors :

ONE

Contact Style :

RND PIN-SKT
