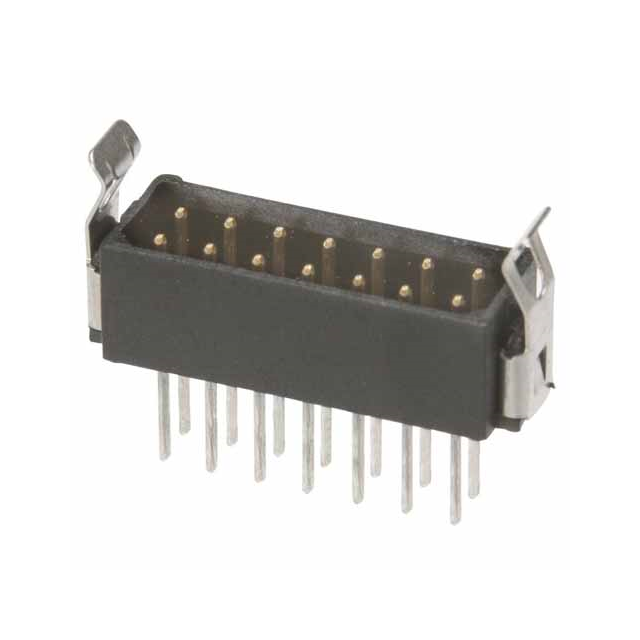

M80-7534422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Body Depth :

0.219 inch

Mating Contact Row Spacing :

0.079 inch

Mounting Style :

Straight

MIL Conformance :

No

Filter Feature :

No

JESD-609 Code :

e0

Contact Resistance :

25mOhm

PCB Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Pbfree Code :

No

IEC Conformance :

No

Length - Termination :

0.177 inch

Factory Lead Time :

13 Weeks

Insulation Resistance :

100000000Ohm

Contact Pattern :

RECTANGULAR

Contact Finish Termination :

Tin/Lead (Sn/Pb)

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

Contact Style :

RND PIN-SKT

Total Number of Contacts :

44

Number of Conductors :

ONE

Mounting Type :

BOARD

Connector Type :

BOARD CONNECTOR

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Operating Temperature (Min) :

-55°C

Polarization Key :

POLARIZED HOUSING

Reach Compliance Code :

Compliant

Number of Rows :

2

Operating Temperature (Max) :

125°C

Durability :

500 Cycles

PCB Contact Row Spacing :

2.0066 mm

Additional Feature :

LATCHED

Terminal Pitch :

2mm

ECCN Code :

EAR99

Reference Standard :

UL

RoHS Status :

Non-RoHS Compliant

DIN Conformance :

No

Contact Finish - Mating :

GOLD (30)

Termination Type :

Solder

Mounting Option 2 :

Latch

Number Of PCB Rows :

2

Body/Shell Style :

Receptacle

Option :

GENERAL PURPOSE

Insulation Material :

Polyamide

Rated Current (Signal) :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Insulator Color :

Black

Body Breadth :

0.235 inch

Plating Thickness :

30μin

Body Length or Diameter :

1.894 inch
