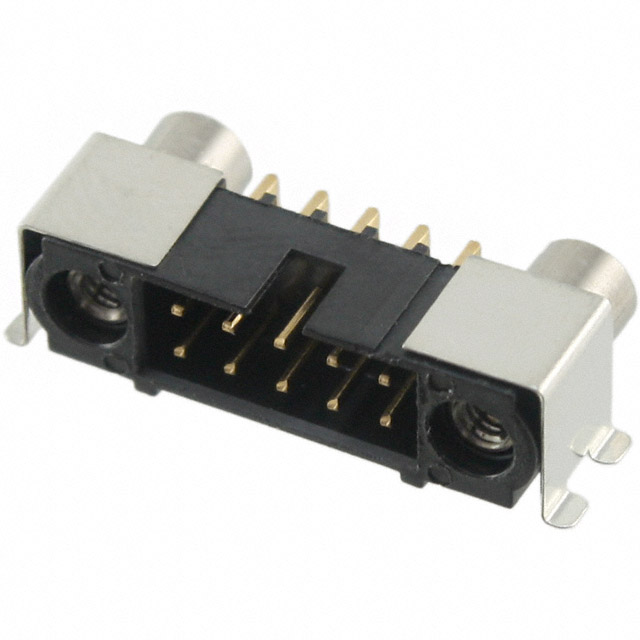

M80-5S21005MQ

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Packaging :

Bulk

Reference Standard :

UL

Pbfree Code :

yes

Connector Type :

Header

Total Number of Contacts :

10

Contact Gender :

Male

IEC Conformance :

No

Number of Positions :

10

Body Length or Diameter :

0.945 inch

Reliability :

COMMERCIAL

DIN Conformance :

No

Contact Finish Thickness - Post :

29.5μin 0.75μm

Factory Lead Time :

9 Weeks

Insulation Height :

0.246 6.25mm

Current Rating :

3A

Mounting Type :

Surface Mount, Right Angle

Number of Rows :

2

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Fastening Type :

Threaded

Plating Thickness :

30μin

ECCN Code :

EAR99

Insulation Color :

Black

REACH SVHC :

No SVHC

Filter Feature :

No

JESD-609 Code :

e4

Durability :

500 Cycles

Contact Finish - Mating :

Gold

Current Rating (Amps) :

2.2A per Contact

Style :

Board to Board or Cable

Shrouding :

Shrouded - 4 Wall

MIL Conformance :

No

Published :

2011

UL Flammability Code :

94V-0

Contact Material :

Brass

Feature :

Keying Slot, Mating Flange, Mating Hardware, Solder Retention

Mating Contact Pitch :

0.079 inch

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Series :

Datamate J-Tek

Material Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Voltage - Rated :

800V

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Pitch - Mating :

0.079 2.00mm

Contact Shape :

Circular

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Housing Material :

Polyphenylene

Option :

GENERAL PURPOSE

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.079 (2.00mm)

Body Depth :

0.397 inch

Termination :

Solder

Number of Conductors :

ONE

Mount :

Surface Mount
