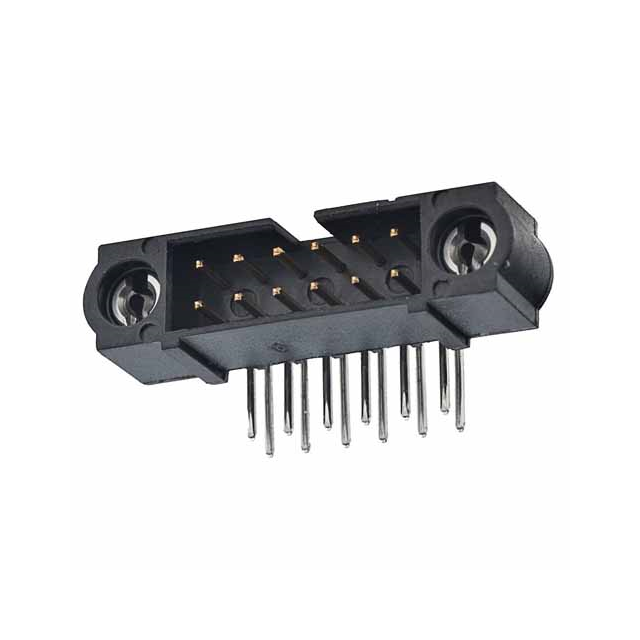

M80-5L14222MC

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Series :

Datamate J-Tek

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Contact Length - Post :

0.118 3.00mm

MIL Conformance :

No

Voltage - Rated :

120V

Feature :

Keying Slot, Mating Flange

ECCN Code :

EAR99

Body Depth :

0.314 inch

RoHS Status :

Non-RoHS Compliant

Mount :

Through Hole

Shrouding :

Shrouded - 4 Wall

Published :

2011

Number of Rows :

2

Contact Shape :

Circular

Number Of PCB Rows :

2

Option :

GENERAL PURPOSE

DIN Conformance :

No

Number of Conductors :

ONE

Factory Lead Time :

10 Weeks

Termination :

Solder

Mixed Contacts :

No

Fastening Type :

Push-Turn Lock

Contact Finish - Mating :

Gold

HTS Code :

8536.69.40.40

Operating Temperature :

-55°C~125°C

UL Flammability Code :

94V-0

Number of Positions :

42

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Board or Cable

Contact Finish Thickness - Post :

118.1μin 3.00μm

Insulation Color :

Black

Reach Compliance Code :

not_compliant

Mounting Type :

Through Hole, Right Angle

Connector Type :

Header

Pbfree Code :

No

Current Rating (Amps) :

2.2A

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

100000000Ohm

Durability :

500 Cycles

Mating Contact Pitch :

0.079 inch

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Contact Material :

Phosphor Bronze

Plating Thickness :

30μin

Length - Termination :

0.118 inch

Pitch - Mating :

0.079 2.00mm

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Number of Pins :

21

Row Spacing - Mating :

0.079 (2.00mm)

Contact Finish - Post :

Tin-Lead

Packaging :

Tube

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Type :

Male Pin

JESD-609 Code :

e0

Insulation Height :

0.218 5.55mm

Filter Feature :

No

Reference Standard :

UL
