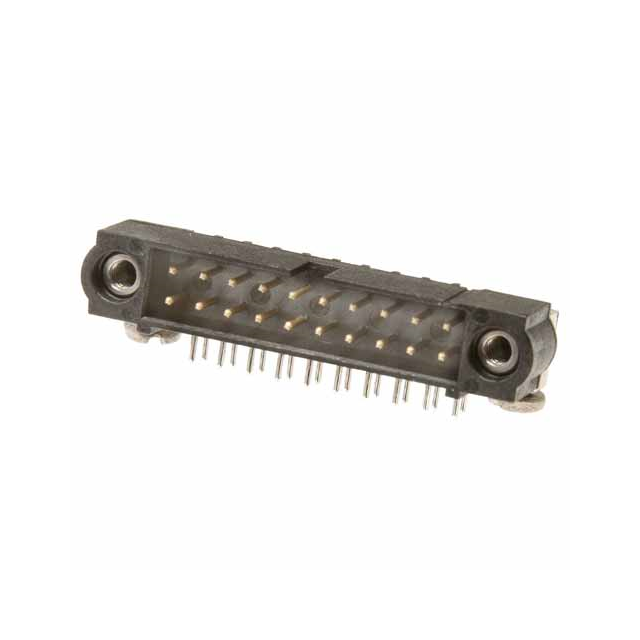

M80-5L11822M5

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Body Breadth :

0.238 inch

PCB Contact Pattern :

RECTANGULAR

Contact Resistance :

25mOhm

Reliability :

COMMERCIAL

Reference Standard :

UL

HTS Code :

8536.69.40.40

Contact Material :

NOT SPECIFIED

JESD-609 Code :

e0

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Contact Style :

RND PIN-SKT

Mounting Type :

BOARD

Mating Contact Row Spacing :

0.079 inch

ECCN Code :

EAR99

Operating Temperature (Max) :

125°C

Contact Gender :

Male

Body Depth :

0.315 inch

Contact Finish - Mating :

NOT SPECIFIED

Insulation Resistance :

100000000Ohm

Rated Current (Signal) :

3A

Length - Termination :

0.118 inch

Contact Pattern :

RECTANGULAR

Mounting Option 2 :

LOCKING

Total Number of Contacts :

18

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Body/Shell Style :

Receptacle

Number Of PCB Rows :

2

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

9 Weeks

Number of Conductors :

ONE

Operating Temperature (Min) :

-55°C

Termination Type :

Solder

Mounting Style :

Straight

Body Length or Diameter :

1.102 inch

Insulator Color :

Black

Durability :

500 Cycles

Mounting Option 1 :

M2

Terminal Pitch :

2.0066mm

Mating Contact Pitch :

0.079 inch

Connector Type :

BOARD CONNECTOR

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Plating Thickness :

30μin
