M80-5L11442MC
Or copy the link below:
- Mfr.Part #
- M80-5L11442MC
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 14POS 2MM
- Stock
- 56
- In Stock ：
- 56
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Insulation Resistance :
- 100MOhm
- REACH SVHC :
- No SVHC
- Contact Finish - Mating :
- Gold
- Packaging :
- Tube
- Working Voltage :
- 120V
- UL Flammability Code :
- 94V-0
- Current Rating (Amps) :
- 2.2A
- Reference Standard :
- UL
- RoHS Status :
- ROHS3 Compliant
- Length - Termination :
- 0.118 inch
- Contact Gender :
- Male
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Mount :
- Through Hole
- Number of Positions :
- 14
- Plating Thickness :
- 30μin
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.218 5.55mm
- Reliability :
- COMMERCIAL
- Durability :
- 500 Cycles
- Body Length or Diameter :
- 0.945 inch
- JESD-609 Code :
- e3
- Filter Feature :
- No
- HTS Code :
- 8536.69.40.40
- MIL Conformance :
- No
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Published :
- 2009
- Number Of PCB Rows :
- 2
- Contact Material :
- Phosphor Bronze
- Feature :
- Keying Slot, Mating Flange
- Factory Lead Time :
- 9 Weeks
- Contact Resistance :
- 25mOhm
- Lead Pitch :
- 2mm
- Radiation Hardening :
- No
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Shrouding :
- Shrouded - 4 Wall
- ECCN Code :
- EAR99
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Housing Material :
- Polyphenylene
- DIN Conformance :
- No
- Contact Type :
- Male Pin
- Number of Conductors :
- ONE
- Material :
- Glass
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Length - Post :
- 0.118 3.00mm
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- Connector Type :
- Header
- Contact Shape :
- Circular
- Pitch - Mating :
- 0.079 2.00mm
- Pbfree Code :
- yes
- Fastening Type :
- Push-Turn Lock
- Mating Contact Pitch :
- 0.079 inch
- Mixed Contacts :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -55°C~125°C
- Series :
- Datamate J-Tek
- Style :
- Board to Board or Cable
- Number of Rows :
- 2
- Current Rating :
- 3A
- Option :
- GENERAL PURPOSE
- Datasheets
- M80-5L11442MC

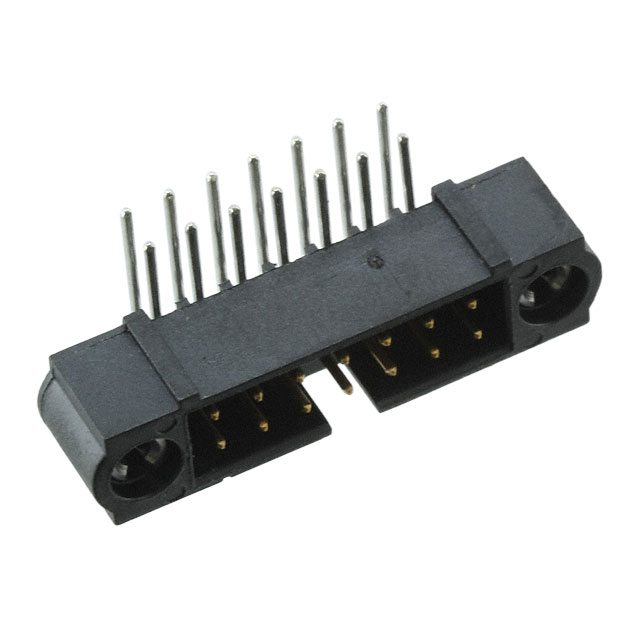

Datamate J-Tek Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Polyphenylene Sulfide (PPS), Glass Filled 14-Position Board to Board or Cable 0.218 5.55mm Height
M80-5L11442MC Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tube case is used to package the product.A product of the Datamate J-Tek Series, it belongs to the range of products of that series.A number of features make the Keying Slot, Mating Flange feature more powerful.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
M80-5L11442MC Features
Datamate J-Tek series
