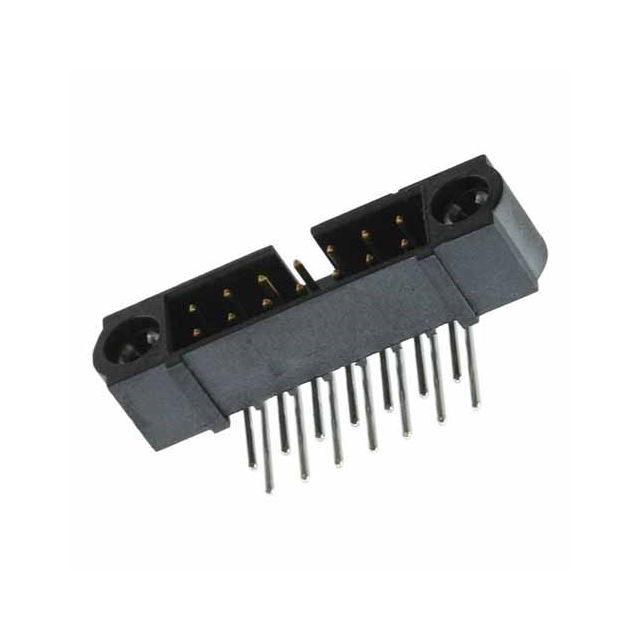

M80-5L11422MC

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2011

Voltage - Rated :

120V

Style :

Board to Board or Cable

Reach Compliance Code :

not_compliant

Number of Rows :

2

UL Flammability Code :

94V-0

Termination :

Solder

Reference Standard :

UL

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Mating :

Gold

Pitch - Mating :

0.079 2.00mm

Contact Material :

Phosphor Bronze

Option :

GENERAL PURPOSE

Insulation Height :

0.218 5.55mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Number Of PCB Rows :

2

Plating Thickness :

30μin

Number of Conductors :

ONE

Connector Type :

Header

Body Length or Diameter :

0.945 inch

Contact Finish - Post :

Tin-Lead

Mixed Contacts :

No

Fastening Type :

Push-Turn Lock

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Mount :

Through Hole

Number of Positions :

14

Shrouding :

Shrouded - 4 Wall

Number of Pins :

7

Row Spacing - Mating :

0.079 (2.00mm)

Contact Type :

Male Pin

Mounting Type :

Through Hole, Right Angle

Reliability :

COMMERCIAL

Packaging :

Tube

ECCN Code :

EAR99

Insulation Color :

Black

Contact Shape :

Circular

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pbfree Code :

No

Length - Termination :

0.118 inch

Insulation Resistance :

100000000Ohm

Filter Feature :

No

MIL Conformance :

No

Contact Length - Post :

0.118 3.00mm

Factory Lead Time :

10 Weeks

Current Rating (Amps) :

2.2A

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

All

Feature :

Keying Slot, Mating Flange

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Durability :

500 Cycles

DIN Conformance :

No

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e0

Series :

Datamate J-Tek
