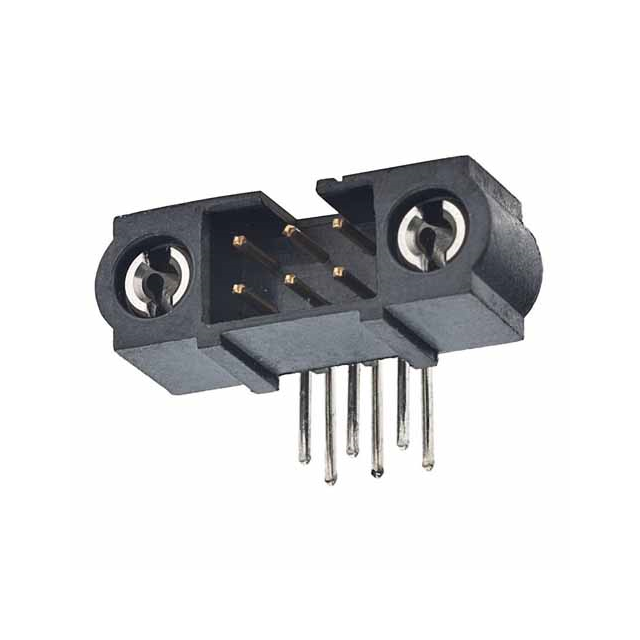

M80-5L10622MC

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Type :

Male Pin

JESD-609 Code :

e0

Mount :

Through Hole

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

Reach Compliance Code :

not_compliant

Operating Temperature :

-55°C~125°C

ECCN Code :

EAR99

Contact Finish - Mating :

Gold

IEC Conformance :

No

Insulation Height :

0.218 5.55mm

Series :

Datamate J-Tek

Housing Material :

Polyphenylene

Contact Length - Post :

0.118 3.00mm

Factory Lead Time :

10 Weeks

Contact Finish Thickness - Post :

118.1μin 3.00μm

Packaging :

Tube

Filter Feature :

No

MIL Conformance :

No

Style :

Board to Board or Cable

Reference Standard :

UL

Pbfree Code :

No

RoHS Status :

Non-RoHS Compliant

Number Of PCB Rows :

2

Fastening Type :

Push-Turn Lock

Mounting Type :

Through Hole, Right Angle

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Number of Rows :

2

Contact Finish - Post :

Tin-Lead

Voltage - Rated :

120V

Body Depth :

0.314 inch

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Termination :

Solder

Contact Shape :

Circular

Length - Termination :

0.118 inch

Number of Positions Loaded :

All

Insulation Color :

Black

Number of Conductors :

ONE

Published :

2011

Plating Thickness :

30μin

Shrouding :

Shrouded - 4 Wall

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Number of Positions :

6

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

500 Cycles

Reliability :

COMMERCIAL

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Option :

GENERAL PURPOSE

Mating Contact Pitch :

0.079 inch

Current Rating :

3A

Insulation Resistance :

100000000Ohm

Contact Gender :

Male

Current Rating (Amps) :

2.2A

Pitch - Mating :

0.079 2.00mm

DIN Conformance :

No

Feature :

Keying Slot, Mating Flange

Row Spacing - Mating :

0.079 (2.00mm)
