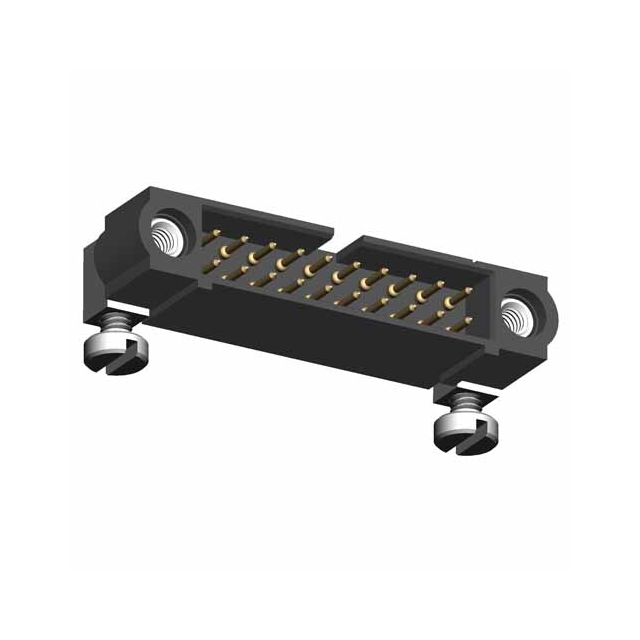

M80-5C10605M5
Or copy the link below:
- Mfr.Part #
- M80-5C10605M5
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 6POS 2MM
- Stock
- 24,390
- In Stock ：
- 24,390
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.079 (2.00mm)
- Contact Finish - Mating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- -
- RoHS :
- Details
- Product Status :
- Active
- Series :
- M80
- Connector Type :
- Header
- Mounting Type :
- Surface Mount, Right Angle
- Material Flammability Rating :
- UL94 V-0
- Voltage Rating :
- 800V
- Features :
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Style :
- Board to Board or Cable
- Contact Material :
- Brass
- Contact Shape :
- Circular
- Number of Positions :
- 6
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Tradename :
- Datamate
- Base Product Number :
- M80-5C1
- Contact Length - Mating :
- -
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Termination :
- Solder
- Contact Length - Post :
- -
- Contact Finish Thickness - Post :
- -
- Contact Type :
- Male Pin
- Fastening Type :
- Threaded
- Current Rating (Amps) :
- 2.2A per Contact
- Overall Contact Length :
- -
- Contact Finish Thickness - Mating :
- 10.0µin (0.25µm)
- Insulation Height :
- 0.219 (5.56mm)
- Ingress Protection :
- -
- Package :
- Tube
- Mated Stacking Heights :
- -
- Applications :
- -
- Insulation Color :
- Black
- Operating Temperature :
- -55°C ~ 125°C
- Datasheets
- M80-5C10605M5
M80 Series Header Solder 6 Positions -55°C ~ 125°C Surface Mount, Right Angle
M80-5C10605M5 Overview
The product is packaged in Header.This device is mounted in the Surface Mount, Right Angle position.There is a product in the M80 Series.As a result, the device runs at -55°C ~ 125°C Operating Temperature.
M80-5C10605M5 Features
M80 series
M80-5C10605M5 Applications
There are a lot of Harwin
M80-5C10605M5 Backplane Connectors applications.
