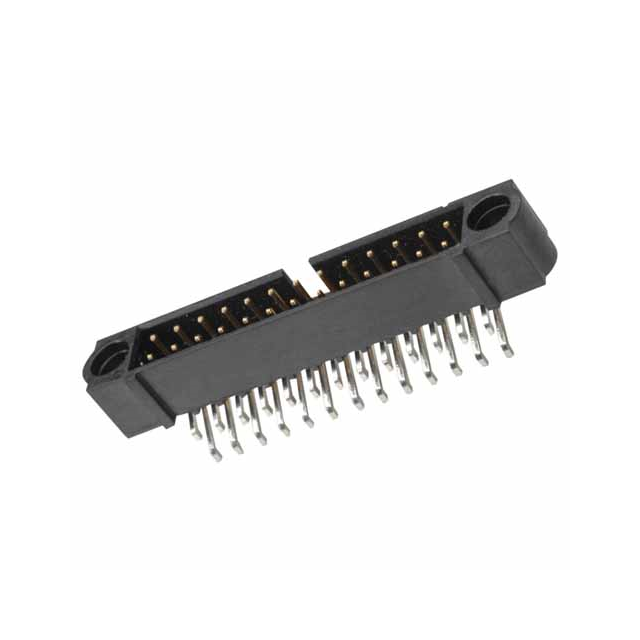

M80-5521842

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Factory Lead Time :

17 Weeks

Current Rating (Amps) :

2.2A

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Row Spacing - Mating :

0.079 (2.00mm)

Number of Positions :

18

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Circular

Mount :

Surface Mount

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Push-Pull

UL Flammability Code :

94V-0

Voltage - Rated :

800V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.079 2.00mm

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Additional Feature :

RoHS Compliant

Style :

Board to Board or Cable

Insulation Resistance :

100000000Ohm

Contact Finish - Post :

Tin

Body Depth :

0.398 inch

Connector Type :

Header

Insulation Height :

0.218 5.55mm

Operating Temperature :

-55°C~125°C

JESD-609 Code :

e3

Contact Material :

Brass

Contact Finish - Mating :

Gold

Contact Gender :

Male

Published :

2013

Filter Feature :

No

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

MIL Conformance :

No

Number of Rows :

2

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number Of PCB Rows :

2

Series :

Datamate J-Tek

Material Flammability Rating :

UL94 V-0

Plating Thickness :

30μin

Mounting Type :

Surface Mount, Right Angle

Termination :

Solder

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

IEC Conformance :

No

Insulation Color :

Black

Packaging :

Tube

Total Number of Contacts :

18

Durability :

500 Cycles

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Shrouding :

Shrouded - 4 Wall

Feature :

Keying Slot, Mating Flange

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Type :

Male Pin

Number of Conductors :

ONE

Reliability :

COMMERCIAL
