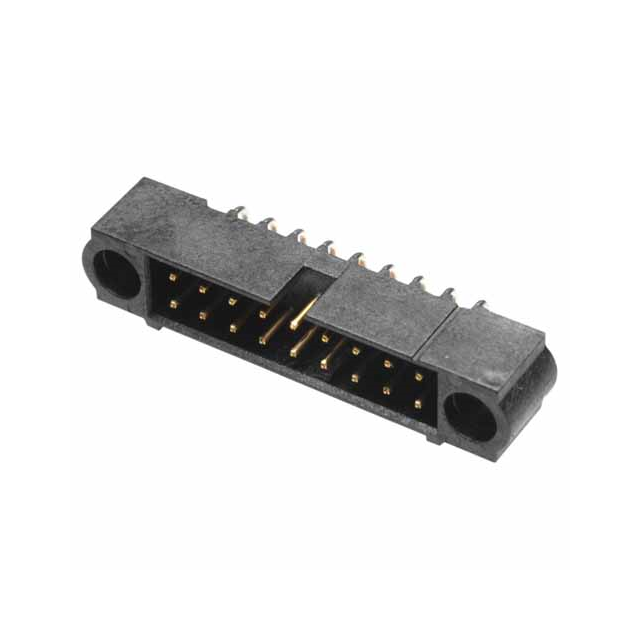

M80-5511842

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Fastening Type :

Push-Pull

Published :

2013

Contact Length - Post :

0.173 4.40mm

Body Depth :

0.315 inch

Number of Positions Loaded :

All

Operating Temperature :

-55°C~125°C

Pbfree Code :

yes

JESD-609 Code :

e3

Packaging :

Tube

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole, Right Angle

Contact Shape :

Circular

Termination :

Solder

Voltage - Rated :

120V

Style :

Board to Board or Cable

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Connector Type :

Header

Filter Feature :

No

Factory Lead Time :

11 Weeks

Insulation Color :

Black

Row Spacing - Mating :

0.079 (2.00mm)

Contact Material :

Phosphor Bronze

Current Rating (Amps) :

2.2A

Reference Standard :

UL

Contact Finish - Post :

Tin

Number of Positions :

18

Contact Finish - Mating :

Gold

Option :

GENERAL PURPOSE

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Mixed Contacts :

No

MIL Conformance :

No

Mating Contact Pitch :

0.079 inch

HTS Code :

8536.69.40.40

Number of Rows :

2

Durability :

500 Cycles

RoHS Status :

ROHS3 Compliant

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Insulation Height :

0.218 5.55mm

Feature :

Keying Slot, Mating Flange

Plating Thickness :

30μin

Pitch - Mating :

0.079 2.00mm

Contact Type :

Male Pin

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

100000000Ohm

Contact Gender :

Male

ECCN Code :

EAR99

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Series :

Datamate J-Tek

DIN Conformance :

No

Length - Termination :

0.177 inch

Mount :

Through Hole
