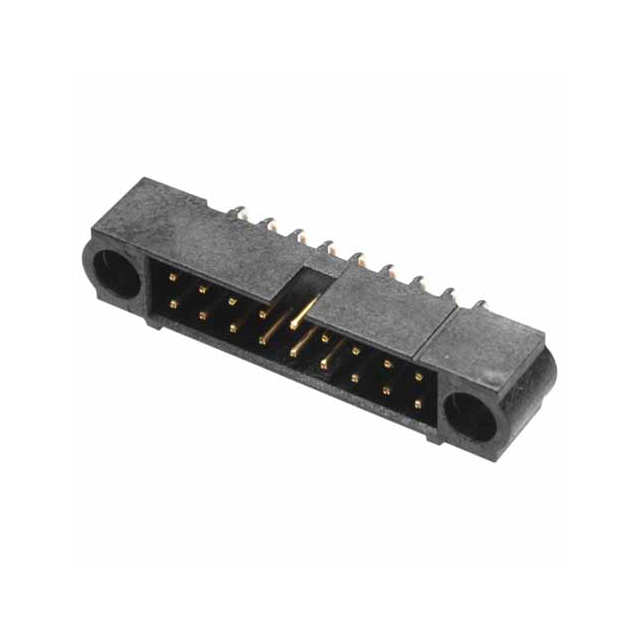

M80-5501822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Feature :

Keying Slot, Mating Flange

Termination :

Solder

Mating Contact Pitch :

0.079 inch

Number of Positions :

18

Number of Positions Loaded :

All

Operating Temperature :

-55°C~125°C

JESD-609 Code :

e0

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

MIL Conformance :

No

Body Depth :

0.315 inch

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

100000000Ohm

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

No

UL Flammability Code :

94V-0

Mount :

Through Hole

Contact Length - Post :

0.118 3.00mm

Row Spacing - Mating :

0.079 (2.00mm)

Number of Conductors :

ONE

Connector Type :

Header

Durability :

500 Cycles

RoHS Status :

Non-RoHS Compliant

Contact Finish - Post :

Tin-Lead

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Material :

Phosphor Bronze

Factory Lead Time :

11 Weeks

Insulation Height :

0.218 5.55mm

Number of Rows :

2

Current Rating (Amps) :

2.2A

Additional Feature :

PANEL MOUNTABLE

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Reliability :

COMMERCIAL

Pbfree Code :

No

Filter Feature :

No

Contact Finish - Mating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Datamate J-Tek

Contact Gender :

Male

ECCN Code :

EAR99

Number Of PCB Rows :

2

Packaging :

Tube

Published :

2013

Option :

GENERAL PURPOSE

HTS Code :

8536.69.40.40

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Circular

Fastening Type :

Push-Pull

Style :

Board to Board or Cable

Plating Thickness :

30μin

Reach Compliance Code :

not_compliant

Insulation Color :

Black

Pitch - Mating :

0.079 2.00mm

Mixed Contacts :

No

Voltage - Rated :

120V

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Type :

Male Pin

Reference Standard :

UL

IEC Conformance :

No
