M80-5431222
Or copy the link below:
- Mfr.Part #
- M80-5431222
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 12POS 2MM
- Stock
- 23,700
- In Stock ：
- 23,700
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.218 5.55mm
- Max Voltage Rating (AC) :
- 120V
- Contact Shape :
- Circular
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Feature :
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Reach Compliance Code :
- not_compliant
- Filter Feature :
- No
- Plating Thickness :
- 30μin
- Durability :
- 500 Cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Contact Resistance :
- 25mOhm
- Orientation :
- RIGHT ANGLE
- Max Current Rating :
- 3A
- Additional Feature :
- PANEL MOUNTABLE
- Housing Material :
- Polyphenylene
- Number of Conductors :
- ONE
- Polarization Key :
- POLARIZED HOUSING
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.079 2.00mm
- Contact Type :
- Male Pin
- Published :
- 2013
- Total Number of Contacts :
- 12
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Resistance :
- 100000000Ohm
- Current Rating (Amps) :
- 2.2A
- Number Of PCB Rows :
- 2
- Style :
- Board to Board or Cable
- Series :
- Datamate J-Tek
- Contact Finish - Post :
- Tin-Lead
- DIN Conformance :
- No
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- JESD-609 Code :
- e0
- RoHS Status :
- Non-RoHS Compliant
- Factory Lead Time :
- 13 Weeks
- Depth :
- 9.45mm
- Contact Gender :
- Male
- Packaging :
- Tube
- Operating Temperature :
- -55°C~125°C
- Mating Contact Pitch :
- 0.079 inch
- Fastening Type :
- Threaded
- Length :
- 22mm
- Housing Color :
- Black
- IEC Conformance :
- No
- Mount :
- Surface Mount
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- Reference Standard :
- UL
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Pbfree Code :
- No
- MIL Conformance :
- No
- Voltage - Rated :
- 800V
- Termination :
- Solder
- Mounting Type :
- Surface Mount, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 12
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Number of Rows :
- 2
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Option :
- GENERAL PURPOSE
- Number of Positions Loaded :
- All
- Datasheets
- M80-5431222
M80-5431222 Documents

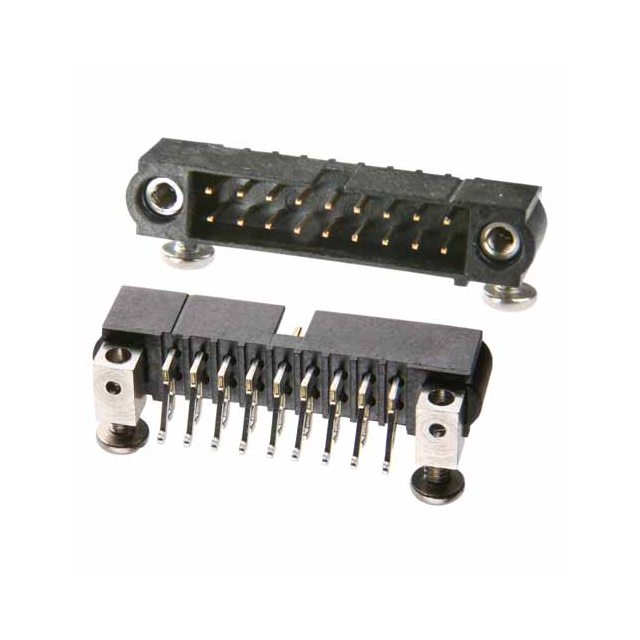

Datamate J-Tek Series 2-Row Header Solder Copper Alloy Tube Surface Mount, Right Angle Gold Polyphenylene Sulfide (PPS), Glass Filled 12-Position Board to Board or Cable 0.218 5.55mm Height
M80-5431222 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tube case is used to package the product.A product of the Datamate J-Tek Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PANEL MOUNTABLE, to name a few.A number of features make the Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware feature more powerful.Surface Mount represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
