M80-5405042
- Mfr.Part #
- M80-5405042
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 50POS 2MM
- Stock
- 7,737
- In Stock :
- 7,737
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.118 3.00mm
- Number Of PCB Rows :
- 2
- Termination :
- Solder
- Style :
- Board to Board or Cable
- Shrouding :
- Shrouded - 4 Wall
- Feature :
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Contact Material :
- Phosphor Bronze
- PCB Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Current Rating :
- 3A
- Max Voltage Rating (AC) :
- 120V
- Mounting Type :
- Through Hole, Right Angle
- Connector Type :
- Header
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions :
- 50
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Length :
- 60mm
- Height :
- 5.6mm
- Option :
- GENERAL PURPOSE
- JESD-609 Code :
- e3
- Contact Gender :
- Male
- Fastening Type :
- Threaded
- Contact Finish - Mating :
- Gold
- Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.218 5.55mm
- Plating Thickness :
- 30μin
- IEC Conformance :
- No
- Contact Shape :
- Circular
- Max Current Rating :
- 3A
- Insulation Resistance :
- 100MOhm
- Factory Lead Time :
- 9 Weeks
- DIN Conformance :
- No
- Packaging :
- Tube
- Number of Conductors :
- ONE
- Housing Material :
- Polyphenylene
- UL Flammability Code :
- 94V-0
- Contact Resistance :
- 25mOhm
- Housing Color :
- Black
- Current Rating (Amps) :
- 2.2A
- Reliability :
- COMMERCIAL
- Orientation :
- RIGHT ANGLE
- Mixed Contacts :
- No
- Number of Rows :
- 2
- Published :
- 2008
- Reference Standard :
- UL
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Voltage - Rated :
- 800V
- HTS Code :
- 8536.69.40.40
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~125°C
- ECCN Code :
- EAR99
- REACH SVHC :
- No SVHC
- MIL Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Series :
- Datamate J-Tek
- Radiation Hardening :
- No
- Mount :
- Through Hole
- Mating Contact Pitch :
- 0.079 inch
- Datasheets
- M80-5405042
M80-5405042 Documents

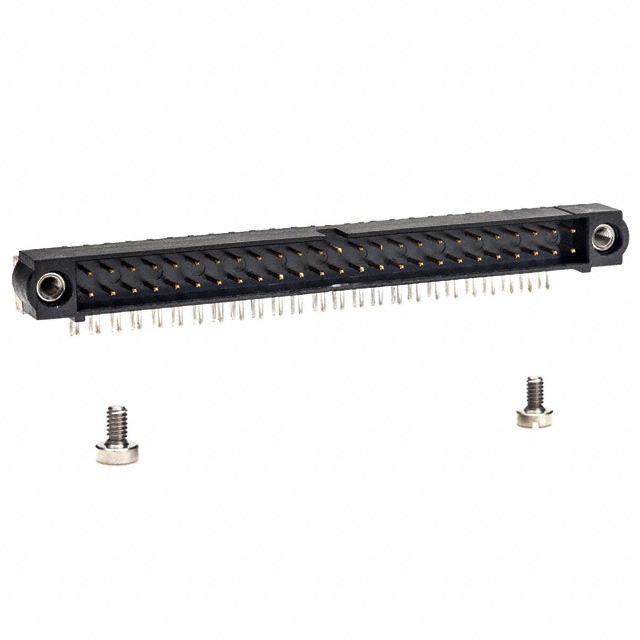

Datamate J-Tek Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Polyphenylene Sulfide (PPS), Glass Filled 50-Position Board to Board or Cable 0.218 5.55mm Height
M80-5405042 Overview
Header packaging is included.This device has a mounting type of Through Hole, Right Angle.We package the product with a Tube case.The product is part of the Datamate J-Tek Series.This feature makes it more powerful in a number of ways due to its Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware feature.You've got Through Hole mounted on the part.This device runs at -55°C~125°C operating temperature.
M80-5405042 Features
Datamate J-Tek series
M80-5405042 Applications
There are a lot of Harwin Inc.
M80-5405042 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
