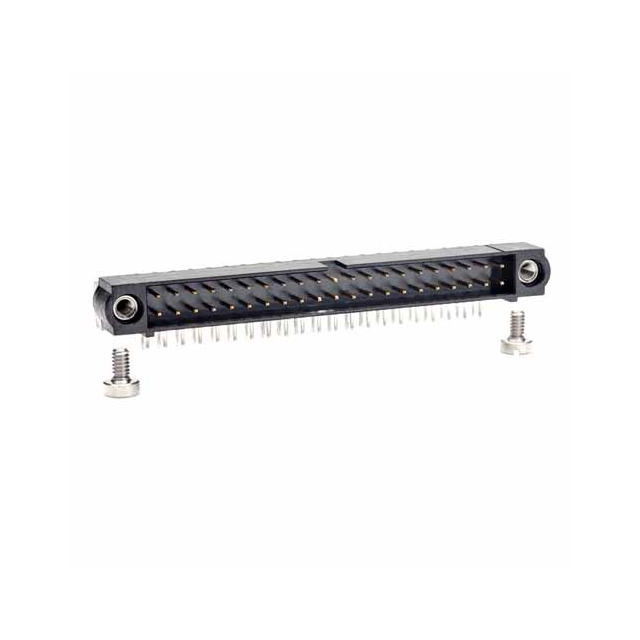

M80-5404222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Published :

2013

MIL Conformance :

No

Termination :

Solder

UL Flammability Code :

94V-0

Pbfree Code :

No

Series :

Datamate J-Tek

Feature :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Packaging :

Tube

Reference Standard :

UL

Operating Temperature :

-55°C~125°C

HTS Code :

8536.69.40.40

JESD-609 Code :

e0

Durability :

500 Cycles

Contact Finish - Mating :

Gold

Contact Material :

Phosphor Bronze

Number of Positions Loaded :

All

RoHS Status :

Non-RoHS Compliant

Contact Shape :

Circular

Fastening Type :

Threaded

Insulation Resistance :

100000000Ohm

Row Spacing - Mating :

0.079 (2.00mm)

Voltage - Rated :

800V

Mixed Contacts :

No

Factory Lead Time :

9 Weeks

Contact Length - Post :

0.118 3.00mm

Insulation Height :

0.218 5.55mm

DIN Conformance :

No

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

ECCN Code :

EAR99

Style :

Board to Board or Cable

Mount :

Through Hole

Filter Feature :

No

Number of Positions :

42

Option :

GENERAL PURPOSE

Number of Rows :

2

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pitch - Mating :

0.079 2.00mm

Contact Gender :

Male

IEC Conformance :

No

Shrouding :

Shrouded - 4 Wall

Reliability :

COMMERCIAL

Plating Thickness :

30μin

Mating Contact Pitch :

0.079 inch

Length - Termination :

0.118 inch

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Through Hole, Right Angle

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Post :

Tin-Lead

Number Of PCB Rows :

2

Reach Compliance Code :

not_compliant

Number of Conductors :

ONE

Current Rating (Amps) :

2.2A

Material Flammability Rating :

UL94 V-0

Insulation Color :

Black

Contact Finish Thickness - Mating :

29.5μin 0.75μm
