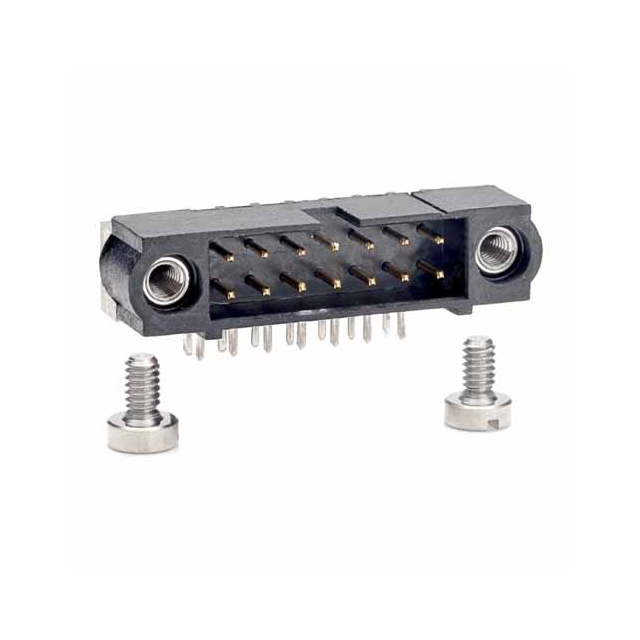

M80-5401422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

HTS Code :

8536.69.40.40

Series :

Datamate J-Tek

DIN Conformance :

No

Contact Type :

Male Pin

JESD-609 Code :

e0

Reference Standard :

UL

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Contact Shape :

Circular

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

UL Flammability Code :

94V-0

Body Length or Diameter :

0.945 inch

Number of Positions :

14

Number Of PCB Rows :

2

Length - Termination :

0.118 inch

Polarization Key :

POLARIZED HOUSING

Contact Finish - Post :

Tin-Lead

Insulation Height :

0.218 5.55mm

Factory Lead Time :

9 Weeks

Number of Conductors :

ONE

Mating Contact Pitch :

0.079 inch

Mount :

Through Hole

RoHS Status :

Non-RoHS Compliant

Number of Positions Loaded :

All

Reach Compliance Code :

not_compliant

Feature :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing - Mating :

0.079 (2.00mm)

Reliability :

COMMERCIAL

Plating Thickness :

30μin

Contact Length - Post :

0.118 3.00mm

Insulation Color :

Black

Published :

2013

Current Rating (Amps) :

2.2A

Pitch - Mating :

0.079 2.00mm

Termination :

Solder

Pbfree Code :

No

Filter Feature :

No

Connector Type :

Header

Number of Rows :

2

MIL Conformance :

No

Contact Finish - Mating :

Gold

Mounting Type :

Through Hole, Right Angle

Fastening Type :

Threaded

Option :

GENERAL PURPOSE

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Contact Gender :

Male

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Insulation Resistance :

100000000Ohm

Contact Material :

Phosphor Bronze

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

118.1μin 3.00μm

Durability :

500 Cycles

Shrouding :

Shrouded - 4 Wall

Voltage - Rated :

800V

IEC Conformance :

No

Packaging :

Tube

Style :

Board to Board or Cable
