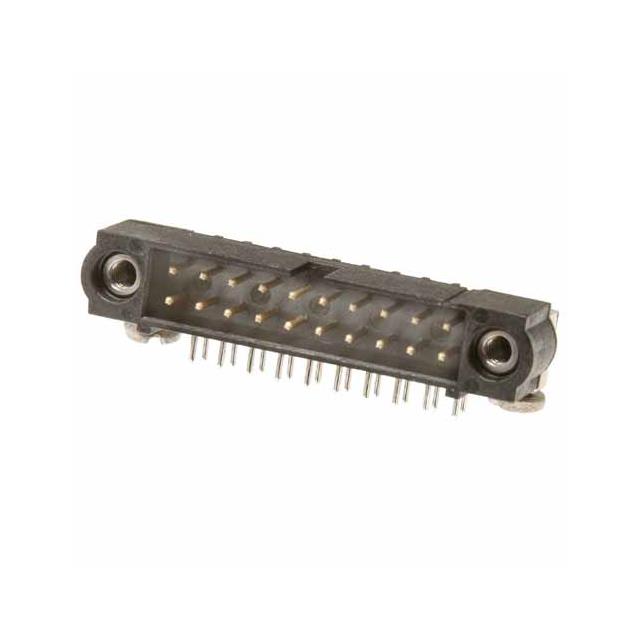

M80-5401405
Or copy the link below:
- Mfr.Part #
- M80-5401405
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 2MM PCB 14POS W/JS R/A
- Stock
- 11,595
- In Stock ：
- 11,595
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Tradename :
- Datamate
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 29.5µin (0.75µm)
- Number of Rows :
- 2
- Mated Stacking Heights :
- -
- RoHS :
- Details
- Contact Length - Post :
- 0.118 (3.00mm)
- Series :
- 101Lok
- Insulation Color :
- Black
- Package :
- Tube
- Features :
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Ingress Protection :
- -
- Insulation Height :
- 0.218 (5.55mm)
- Contact Shape :
- Circular
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 29.5µin (0.75µm)
- Contact Finish - Post :
- Gold
- Contact Length - Mating :
- -
- Applications :
- -
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Current Rating (Amps) :
- 2.2A
- Product Status :
- Active
- Contact Type :
- Male Pin
- Operating Temperature :
- -55°C ~ 125°C
- Contact Material :
- Phosphor Bronze
- Contact Finish - Mating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 14
- Voltage Rating :
- 800VAC/DC
- Material Flammability Rating :
- UL94 V-0
- Overall Contact Length :
- -
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Fastening Type :
- Threaded
- Pitch - Mating :
- 0.079 (2.00mm)
- Number of Positions Loaded :
- All
- Style :
- Board to Board or Cable
- Datasheets
- M80-5401405
M80-5401405 Documents
2 Rows Header 14 Positions Through Hole, Right Angle Male Pin 101Lok
M80-5401405 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.It belongs to the 101Lok Series of products.
M80-5401405 Features
101Lok series
M80-5401405 Applications
There are a lot of Harwin
M80-5401405 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
