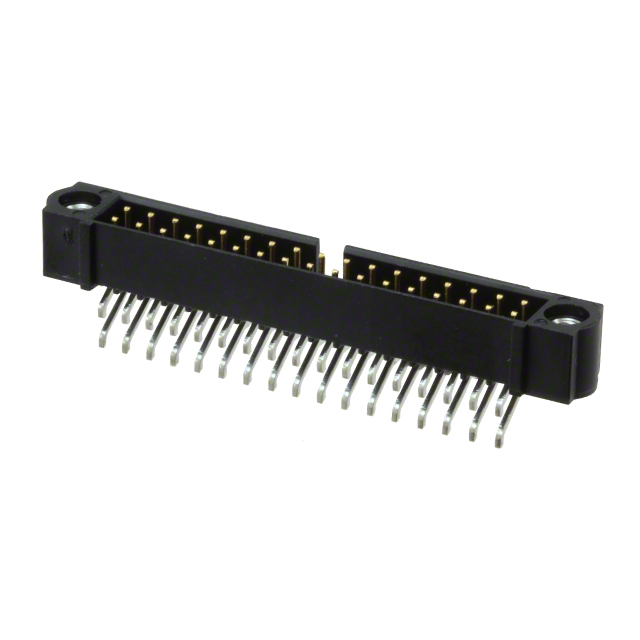

M80-5323442

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Radiation Hardening :

No

UL Flammability Code :

94V-0

Contact Shape :

Circular

ECCN Code :

EAR99

Number of Conductors :

ONE

Packaging :

Tube

Factory Lead Time :

17 Weeks

Reliability :

COMMERCIAL

Body Depth :

0.398 inch

MIL Conformance :

No

Orientation :

RIGHT ANGLE

Series :

Datamate J-Tek

Voltage - Rated :

800V

Mounting Type :

Surface Mount, Right Angle

Contact Type :

Male Pin

Insulation Resistance :

100000000Ohm

Feature :

Keying Slot, Mating Flange

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Additional Feature :

RoHS Compliant

Number of Positions Loaded :

All

Contact Finish - Post :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Post :

118.1μin 3.00μm

Fastening Type :

Threaded

Number of Rows :

2

Current Rating :

3A

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Connector Type :

Header

Insulation Color :

Black

Pitch - Mating :

0.079 2.00mm

Published :

2011

Contact Material :

Brass

Current Rating (Amps) :

2.2A

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant

Style :

Board to Board or Cable

Insulation Height :

0.218 5.55mm

Row Spacing - Mating :

0.079 (2.00mm)

Mating Contact Pitch :

0.079 inch

Mount :

Surface Mount

Polarization Key :

POLARIZED HOUSING

Contact Gender :

Male

Shrouding :

Shrouded - 4 Wall

Pbfree Code :

yes

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Termination :

Solder

REACH SVHC :

No SVHC

Contact Finish - Mating :

Gold

Reference Standard :

UL

Number of Positions :

34

Total Number of Contacts :

34

IEC Conformance :

No

Plating Thickness :

30μin

Option :

GENERAL PURPOSE

DIN Conformance :

No

HTS Code :

8536.69.40.40

Durability :

500 Cycles

JESD-609 Code :

e3

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Mixed Contacts :

No
