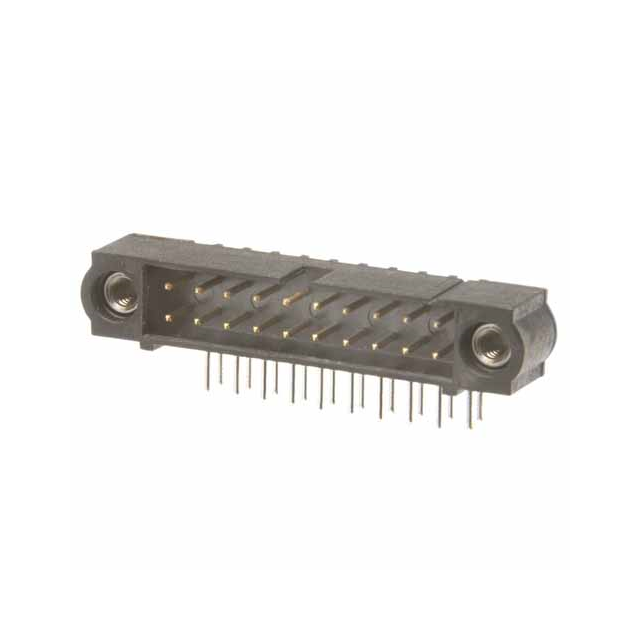

M80-5311422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2012

Additional Feature :

PANEL MOUNTABLE

Termination :

Solder

Contact Material :

Phosphor Bronze

UL Flammability Code :

94V-0

Connector Type :

Header

Number Of PCB Rows :

2

Housing Color :

Black

Length :

24mm

Contact Finish - Mating :

Gold

Contact Resistance :

25mOhm

RoHS Status :

Non-RoHS Compliant

Mixed Contacts :

No

Pitch - Mating :

0.079 2.00mm

Max Voltage Rating (AC) :

120V

Mount :

Through Hole

Number of Positions :

14

Insulation Height :

0.218 5.55mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Contact Type :

Male Pin

JESD-609 Code :

e0

Insulation Resistance :

100000000Ohm

IEC Conformance :

No

Reach Compliance Code :

not_compliant

Durability :

500 Cycles

MIL Conformance :

No

Contact Gender :

Male

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Threaded

HTS Code :

8536.69.40.40

Reference Standard :

UL

Packaging :

Tube

Series :

Datamate J-Tek

DIN Conformance :

No

Housing Material :

Polyphenylene

Mating Contact Pitch :

0.079 inch

Contact Finish Thickness - Post :

118.1μin 3.00μm

Style :

Board to Board or Cable

Feature :

Keying Slot, Mating Flange

Shrouding :

Shrouded - 4 Wall

Option :

GENERAL PURPOSE

Plating Thickness :

30μin

Orientation :

RIGHT ANGLE

Depth :

8mm

Number of Conductors :

ONE

Contact Length - Post :

0.173 4.40mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

ECCN Code :

EAR99

Row Spacing - Mating :

0.079 (2.00mm)

Current Rating (Amps) :

2.2A

Contact Shape :

Circular

Filter Feature :

No

Reliability :

COMMERCIAL

Number of Rows :

2

Contact Finish - Post :

Tin-Lead

Mounting Type :

Through Hole, Right Angle

Polarization Key :

POLARIZED HOUSING

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Pbfree Code :

No

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

9 Weeks

Operating Temperature :

-55°C~125°C

Max Current Rating :

3A
