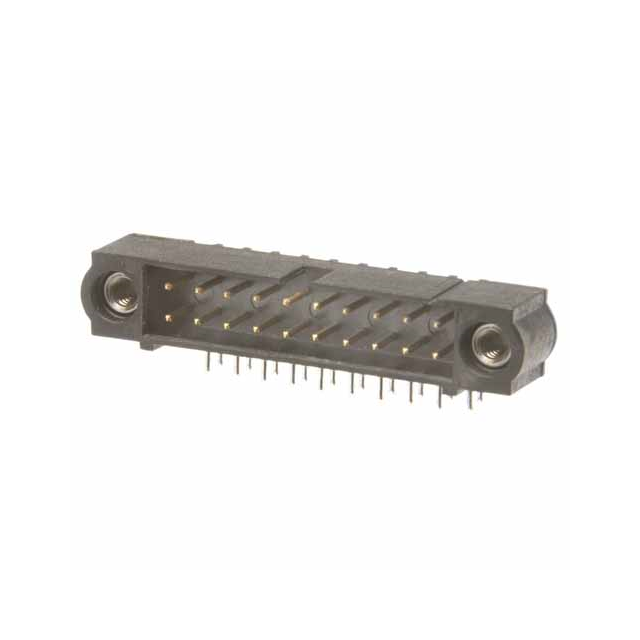

M80-5305005

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Resistance :

100000000Ohm

Durability :

500 Cycles

Contact Resistance :

25mOhm

Mounting Type :

BOARD

Mating Contact Row Spacing :

0.079 inch

ECCN Code :

EAR99

Number of Rows :

2

Contact Gender :

Male

Body Depth :

0.315 inch

Length - Termination :

0.118 inch

Termination Type :

Solder

Mounting Option 1 :

M2x0.4

IEC Conformance :

No

Insulator Color :

Black

Mounting Option 2 :

JACKSCREW

Contact Pattern :

RECTANGULAR

HTS Code :

8536.69.40.40

Total Number of Contacts :

50

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Terminal Pitch :

2mm

Connector Type :

BOARD CONNECTOR

Contact Material :

NOT SPECIFIED

Contact Finish Termination :

Gold (Au)

JESD-609 Code :

e4

Filter Feature :

No

Contact Style :

RND PIN-SKT

UL Flammability Code :

94V-0

Operating Temperature (Min) :

-55°C

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Mixed Contacts :

No

Body Breadth :

0.219 inch

Mounting Style :

RIGHT ANGLE

Reliability :

COMMERCIAL

Number of Conductors :

ONE

Body/Shell Style :

Receptacle

Body Length or Diameter :

2.362 inch

Mating Contact Pitch :

0.079 inch

Operating Temperature (Max) :

125°C

DIN Conformance :

No

Option :

GENERAL PURPOSE

MIL Conformance :

No

Reference Standard :

UL

Contact Finish - Mating :

NOT SPECIFIED

Factory Lead Time :

9 Weeks
