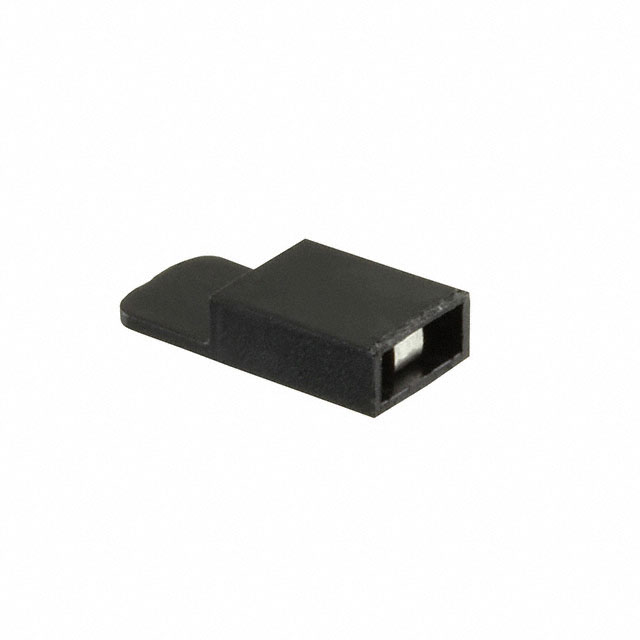

M7967-46
Or copy the link below:
- Mfr.Part #
- M7967-46
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- JUMPER SKT W HANDLE BLACK
- Stock
- 25,901
- In Stock ：
- 25,901
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Shunts, Jumpers
- Radiation Hardening :
- No
- Series :
- M79
- Max Current Rating :
- 3A
- Housing Material :
- Polyester, Glass Filled
- Gender :
- Female Sockets
- Published :
- 2013
- Max Operating Temperature :
- 85°C
- Max Voltage Rating (DC) :
- 250V
- Color :
- Black
- Contact Plating :
- Tin
- Number of Contacts :
- 2
- Contact Resistance :
- 30mOhm
- Max Voltage Rating (AC) :
- 250V
- Voltage - Rated :
- 250V
- Length :
- 5mm
- Contact Gender :
- FEMALE
- Number of Positions :
- 2
- Flammability Rating :
- UL94 V-0
- Height :
- 0.406 10.31mm
- Contact Material :
- Bronze
- Number of Rows :
- 1
- Number of Positions or Pins (Grid) :
- 2 (1 x 2)
- Type :
- Closed Top, Grip
- Pitch :
- 0.100 2.54mm
- Current Rating (Amps) :
- 3A
- Depth :
- 2.3mm
- Housing Color :
- Black
- Contact Finish Thickness :
- 118.1μin 3.00μm
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 9 Weeks
- Orientation :
- Straight
- Contact Finish :
- Tin
- Current Rating :
- 3A
- RoHS Status :
- ROHS3 Compliant
- Insulation Resistance :
- 1GOhm
- Datasheets
- M7967-46
