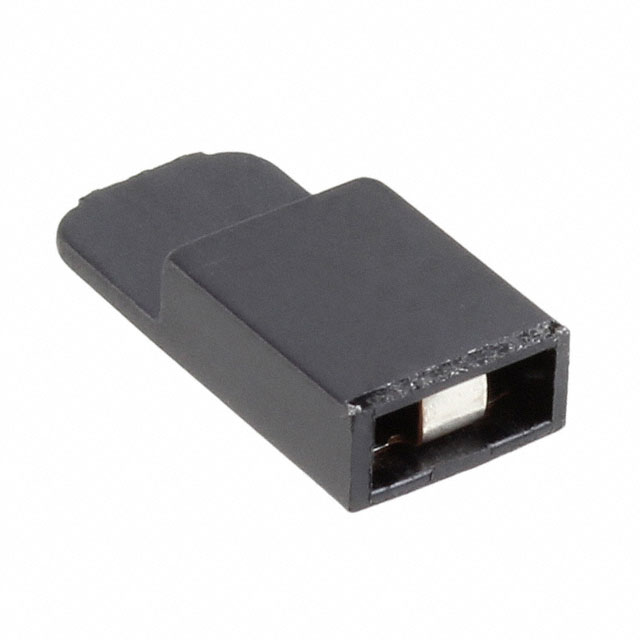

M7967-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Min Operating Temperature :

-40°C

Pbfree Code :

yes

Radiation Hardening :

No

JESD-609 Code :

e4

Number of Contacts :

2

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material :

Polyester

Contact Style :

SQ PIN-SKT

Number of Conductors :

ONE

Type :

Closed Top, Grip

Height :

0.406 10.31mm

Rated Current (Signal) :

3A

Max Current Rating :

3A

Body/Shell Style :

PLUG

Contact Finish Thickness :

5.11μin 0.130μm

Series :

M79

Contact Gender :

FEMALE

Material Flammability Rating :

UL94 V-0

Length :

5mm

Durability :

300 Cycles

Contact Resistance :

25mOhm

Max Voltage Rating (AC) :

250V

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Number of Positions or Pins (Grid) :

2 (1 x 2)

Plating Thickness :

5μin

Max Operating Temperature :

85°C

Current Rating :

3A

Number of Rows :

1

Color :

Black

ECCN Code :

EAR99

Insulation Resistance :

1GOhm

Housing Material :

Polyester, Glass Filled

Max Voltage Rating (DC) :

250V

Gender :

Female Sockets

Contact Finish :

Gold

Depth :

2.3mm

Published :

2005

Orientation :

Straight

Contact Material :

Bronze

Pitch :

0.100 2.54mm

RoHS Status :

ROHS3 Compliant

Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Packaging :

Bulk
