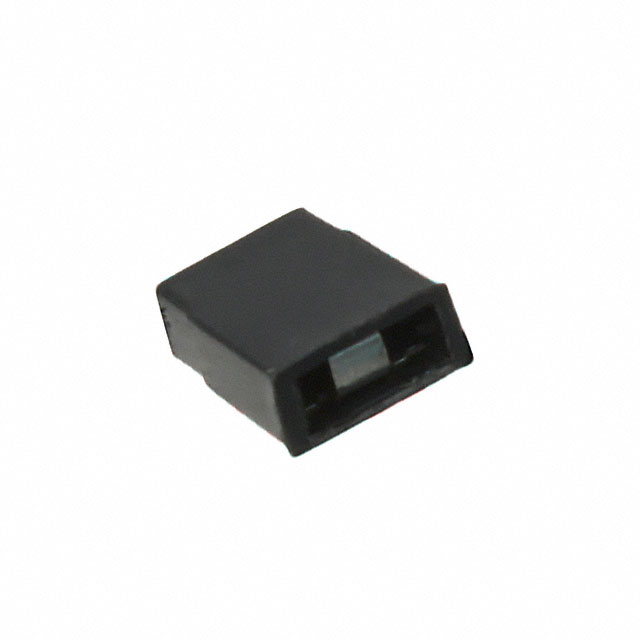

M7567-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Contact Style :

SQ PIN-SKT

Length :

6.3mm

Max Voltage Rating (DC) :

250V

Color :

Black

RoHS Status :

ROHS3 Compliant

Width :

5mm

Contact Finish Thickness :

5.11μin 0.130μm

Durability :

300 Cycles

Factory Lead Time :

9 Weeks

Number of Positions or Pins (Grid) :

2 (1 x 2)

Series :

M20

Insulation Resistance :

1GOhm

Max Current Rating :

3A

HTS Code :

8536.69.80.00

Max Operating Temperature :

85°C

Contact Material :

Bronze

Contact Resistance :

25mOhm

Current Rating :

3A

Housing Material :

Polyester, Glass Filled

Height :

0.248 6.30mm

Type :

Open Top

Radiation Hardening :

No

Pbfree Code :

yes

Material :

Glass, Polyester

Body/Shell Style :

PLUG

Material Flammability Rating :

UL94 V-0

Weight :

28.349523g

REACH SVHC :

No SVHC

Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Pitch :

0.100 2.54mm

Contact Gender :

FEMALE

Packaging :

Bulk

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Max Voltage Rating (AC) :

250V

Orientation :

Straight

Contact Finish :

Gold

Reference Standard :

UL

Plating Thickness :

5μin

Gender :

Female Sockets

Rated Current (Signal) :

3A

ECCN Code :

EAR99

Number of Contacts :

2

Depth :

2.3mm

Number of Rows :

1

Lead Pitch :

2.54mm

Min Operating Temperature :

-40°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
