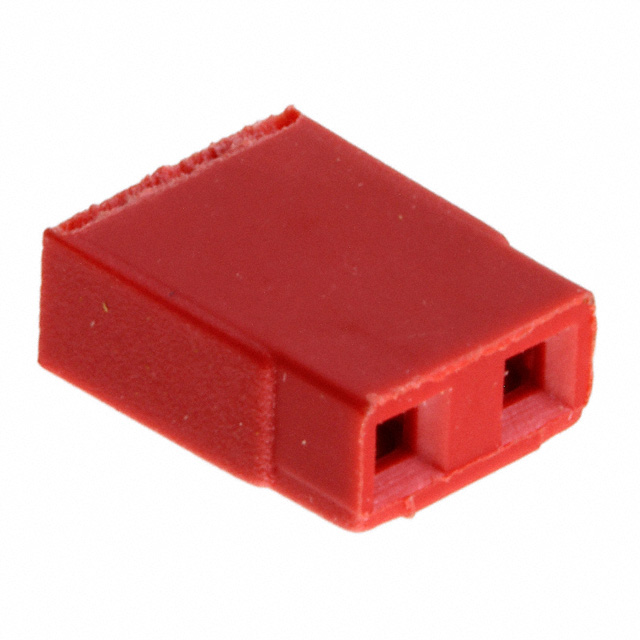

M7566-05

Manufacturer :

Harwin

Product Category :

Shunts, Jumpers

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Contact Finish Thickness :

5.11μin 0.130μm

Height :

0.248 6.30mm

Flammability Rating :

UL94 V-0

HTS Code :

8536.69.80.00

Insulation Material :

Polyester

Max Current Rating :

3A

Insulation Resistance :

1GOhm

Max Voltage Rating (AC) :

250V

Current Rating :

3A

Contact Material :

Bronze

Plating Thickness :

5μin

Number of Rows :

1

Packaging :

Bulk

Number of Conductors :

ONE

Body/Shell Style :

PLUG

Type :

Open Top

Lead Pitch :

2.54mm

Housing Material :

Polyester, Glass Filled

Max Voltage Rating (DC) :

250V

RoHS Status :

ROHS3 Compliant

Material :

Glass, Polyester

Max Operating Temperature :

85°C

Rated Current (Signal) :

3A

Min Operating Temperature :

-40°C

Pitch :

0.100 2.54mm

Number of Positions or Pins (Grid) :

2 (1 x 2)

Depth :

2.3mm

Durability :

300 Cycles

Number of Contacts :

2

Reliability :

COMMERCIAL

Color :

Red

Contact Resistance :

20mOhm

Contact Gender :

FEMALE

Reference Standard :

UL

Width :

5mm

Contact Style :

SQ PIN-SKT

Orientation :

Straight

Weight :

45.359237g

Series :

M75

Length :

6.3mm

Factory Lead Time :

9 Weeks

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Pbfree Code :

yes

Gender :

Female Sockets

Contact Pattern :

RECTANGULAR

REACH SVHC :

No SVHC

Contact Finish :

Gold
