M701-330442

Share

Or copy the link below:

Mfr.Part #
M701-330442
Manufacturer
Harwin
Package / Case
Datasheet
Download
Description
CONN RCPT USB2.0 TYPEB 4POS VERT
Stock
45,217
In Stock :
45,217

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
USB, DVI, HDMI Connector Assemblies
Pbfree Code :
yes
DIN Conformance :
No
Mounting Type :
Through Hole
Option :
GENERAL PURPOSE
Shell Material :
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Shielding :
Unshielded
Contact Style :
USB, SER B SQ
Factory Lead Time :
13 Weeks
Reference Standard :
UL
Insulation Resistance :
1GOhm
Feature :
Board Lock
Additional Feature :
RoHS Compliant
Packaging :
Bulk
RoHS Status :
ROHS3 Compliant
Mount :
Through Hole, Vertical
Termination :
Solder
Filter Feature :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
ECCN Code :
EAR99
Number of Ports :
1
Connector Type :
USB-B (USB TYPE-B)
Voltage - Rated :
30VAC/DC
MIL Conformance :
No
Published :
2006
Contact Finish :
Gold
PCB Contact Pattern :
RECTANGULAR
Contact Material :
Bronze
Specifications :
USB 2.0
Contact Resistance :
30mOhm
Dielectric Withstanding Voltage :
500VAC V
Polarization Key :
POLARIZED HOUSING
Mating Cycles :
1500
Housing Material :
PBT
Operating Temperature :
-55°C~85°C
Insulation Color :
White
Mounting Feature :
Vertical
Depth :
11.15mm
Material Flammability Rating :
UL94 V-0
Gender :
Receptacle
Pitch :
2.5mm
Mixed Contacts :
No
Number Of PCB Rows :
2
JESD-609 Code :
e3
IEC Conformance :
No
Body/Shell Style :
PLUG
Empty Shell :
No
Number of Conductors :
ONE
Reliability :
COMMERCIAL
Current Rating :
1.5A
Number of Contacts :
4
Radiation Hardening :
No
Introducing USB, DVI, HDMI Connector Assemblies Harwin M701-330442 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~85°C, M701-330442 pinout, M701-330442 datasheet PDF, M701-330442 amp .Beyond USB, DVI, HDMI Connector Assemblies Harwin M701-330442 ,we also offer 10103592-0001LF, DX4R005HJ5R2000, USB3131-30-0230-A, Our vast inventory has you covered. Contact us now for immediate solutions.

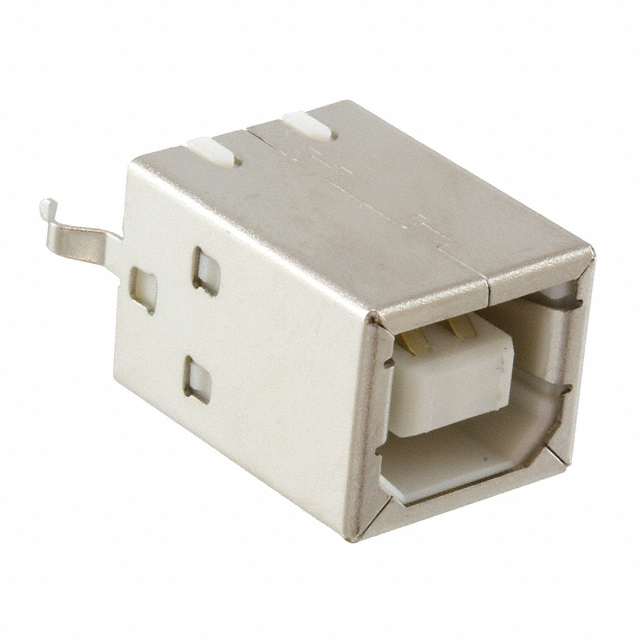

Harwin M701-330442


M701-330442 datasheet pdf and USB, DVI, HDMI Connectors product details from Harwin Inc. stock available at Xinshop

The Harwin M701-330442 USB Connector is a reliable and durable USB Type B receptacle designed for through hole mounting in vertical applications. This connector features 4 positions and is designed to provide a secure connection for USB cables. It is made from high-quality materials and is designed to withstand harsh environments. The connector is also RoHS compliant and is UL approved. This connector is ideal for applications such as industrial automation, medical equipment, and consumer electronics. It is easy to install and provides a reliable connection for USB cables.
