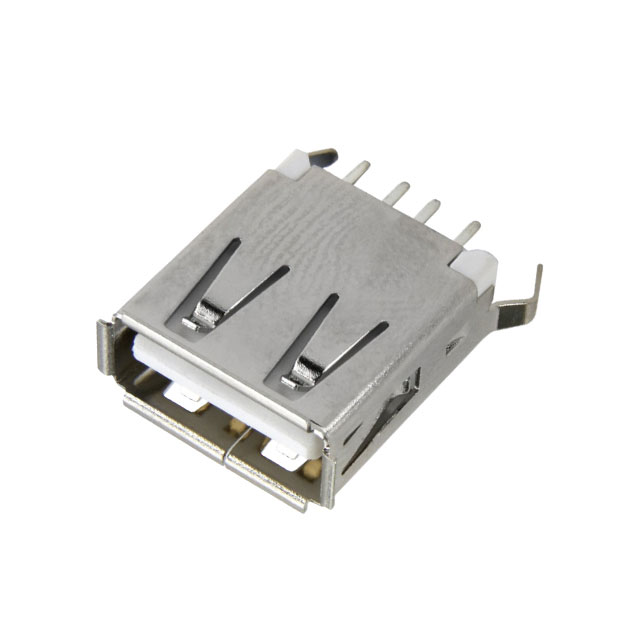

M701-240442

Manufacturer :

Harwin

Product Category :

USB, DVI, HDMI Connector Assemblies

Published :

2006

Feature :

Board Lock

Additional Feature :

RoHS Compliant

Housing Material :

Polybutylene

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell/Shielding Material :

Brass

Empty Shell :

No

Filter Feature :

No

JESD-609 Code :

e3

Insulation Color :

White

Packaging :

Bulk

Number of Conductors :

ONE

Color :

Black

Option :

GENERAL PURPOSE

Reference Standard :

UL

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Orientation :

Straight

Max Operating Temperature :

85°C

Pbfree Code :

yes

Gender :

Receptacle

Current Rating :

1.5A

Shielding :

Unshielded

Number of Contacts :

4

Mount :

Through Hole, Vertical

Insulation Resistance :

1GOhm

Contact Finish :

Gold

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole

Mounting Feature :

Vertical

Depth :

7mm

Dielectric Withstanding Voltage :

500VAC V

Number of Ports :

1

Number Of PCB Rows :

1

Contact Style :

USB, SER B SQ

DIN Conformance :

No

MIL Conformance :

No

Shell Finish :

Tin

Mixed Contacts :

No

Termination :

Solder

Contact Resistance :

30mOhm

Mating Information :

No

Reach Compliance Code :

not_compliant

Min Operating Temperature :

-55°C

Specifications :

USB 2.0

Connector Type :

USB-A (USB TYPE-A)

Rated Current (Signal) :

1A

Body Breadth :

0.276 inch

PCB Contact Pattern :

RECTANGULAR

Body/Shell Style :

PLUG

Contact Material :

Brass, Bronze

Length :

14.4mm
