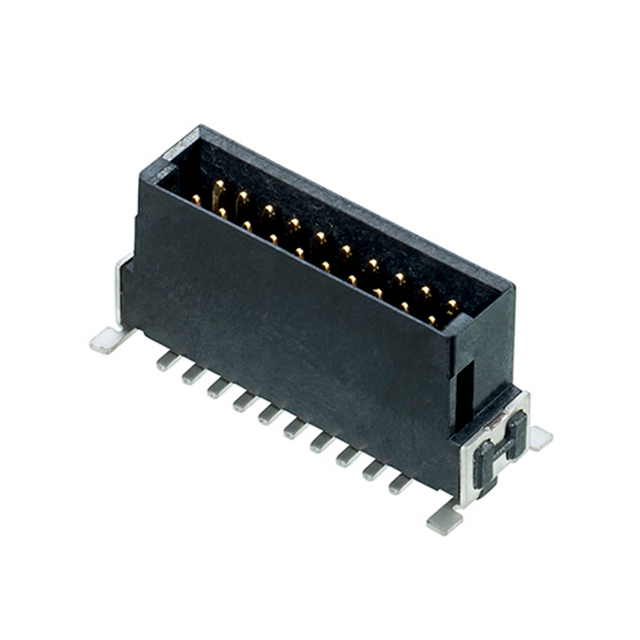

M55-7012042R
Or copy the link below:
- Mfr.Part #
- M55-7012042R
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 1.27MM
- Stock
- 1,842
- In Stock ：
- 1,842
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Feature :
- Board Guide, Pick and Place, Solder Retention
- Mounting Type :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 15 Weeks
- Series :
- Archer Kontrol
- Contact Type :
- Male Pin
- Contact Shape :
- RECTANGULAR
- Number of Positions :
- 20
- Contact Material :
- Phosphor Bronze
- Contact Length - Mating :
- 0.157 4.00mm
- Insulation Color :
- Black
- Style :
- Board to Board
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -55°C~125°C
- Stack Height (Mating) :
- 9.5mm 12.3mm 16.9mm
- Insulation Height :
- 0.325 8.25mm
- Published :
- 2018
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Latch Lock
- Contact Finish Thickness - Mating :
- 1.00μin 0.025μm
- Applications :
- Automotive, General Purpose, Industrial
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Pitch - Mating :
- 0.050 1.27mm
- Connector Type :
- Header
- Number of Rows :
- 2
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Current Rating (Amps) :
- 1.2A
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Datasheets
- M55-7012042R
Archer Kontrol Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 20-Position Board to Board 0.325 8.25mm Height
M55-7012042R Overview
Header packaging is included.This device has a mounting type of Surface Mount.We package the product with a Tape & Reel (TR) case.The product is part of the Archer Kontrol Series.You can use it for Automotive, General Purpose, Industrial.This feature makes it more powerful in a number of ways due to its Board Guide, Pick and Place, Solder Retention feature.This device runs at -55°C~125°C operating temperature.
M55-7012042R Features
Archer Kontrol series
M55-7012042R Applications
There are a lot of Harwin Inc.
M55-7012042R Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
